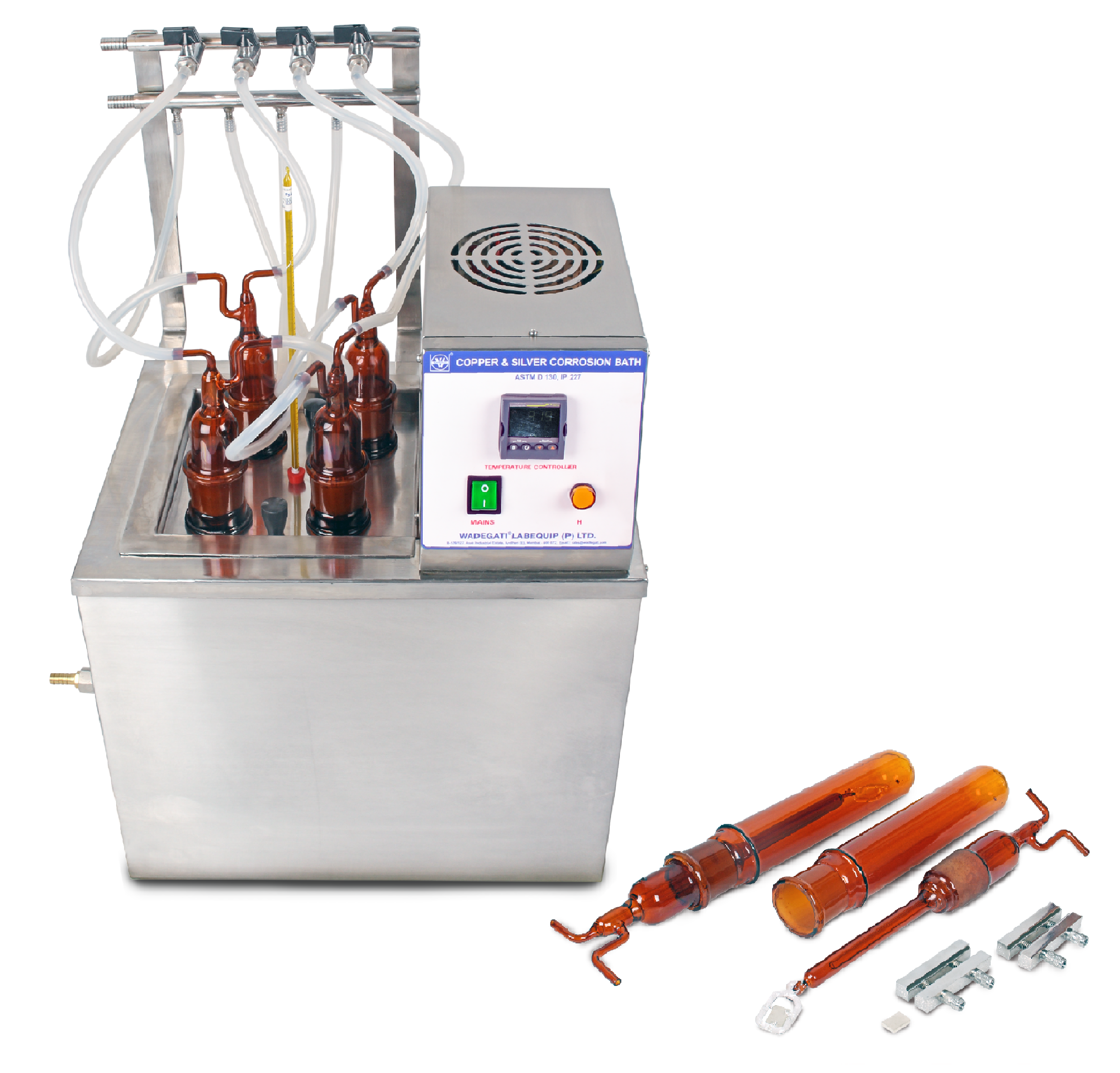

WIL–450 SILVER CORROSION BATH FOR AVIATION TURBINE FUELS

Key Features

• High-Quality Construction

  • Made from 304 AISI stainless steel for both inner and outer bodies for durability and corrosion resistance.

  • Constant Temperature Bath with 4 testing positions.

• Premium Glassware & Components

  • Amber-colored borosilicate glass test tubes and Cold Finger Condenser with hook and cradle.

  • Glass cradles as per IP-227 method for secure sample placement.

• Precision Measurement Tools

  • Silver strips (17–19mm x 12.5–12.7mm x 2.5–3mm) with purity certification.

  • IP-64C / ASTM-12C thermometer (-20°C to 102°C, 0.2°C least count).

  • ASTM Silver Strip Corrosion Standard Chart for accurate evaluation.

• Advanced Temperature Control

  • Microprocessor-based PID controller with PT-100 sensor for precise regulation.

  • Temperature range: Ambient +5°C to 100°C with ±0.5°C accuracy.

Technical Specifications

• Bath Heater: 2 kW

• Circulatory Motor: 1/15 HP, 1440 rpm

• Bath Capacity: 4 Places

• Power Supply: 230V ±10%, AC, 50 Hz, Single Phase

• Total Rating: 15 Amps

Included Accessories

• Stainless steel vice for holding silver strips

• Silicon carbide powder (150 mesh)

• Rubber tubing for outlet nozzle

• Silver strip corrosion reference chart

Applications

• Evaluation of corrosion tendency in petroleum products

• Used in fuel testing laboratories, refineries, aviation fuel testing, and lubricant quality assessment
