Complete setup includes U-tube, 400mL borosilicate glass beaker, and cover assembly
-
Integrated bath stirrer, sample stirrer, and cooling coil for uniform temperature distribution
-
Equipped with 6V lamp and drive motor for smooth functionality
-
Operates on 230V ±10% AC, 1 Phase, 50 Hz power supply
-
Built for durability, ease of use, and accurate aniline point detection

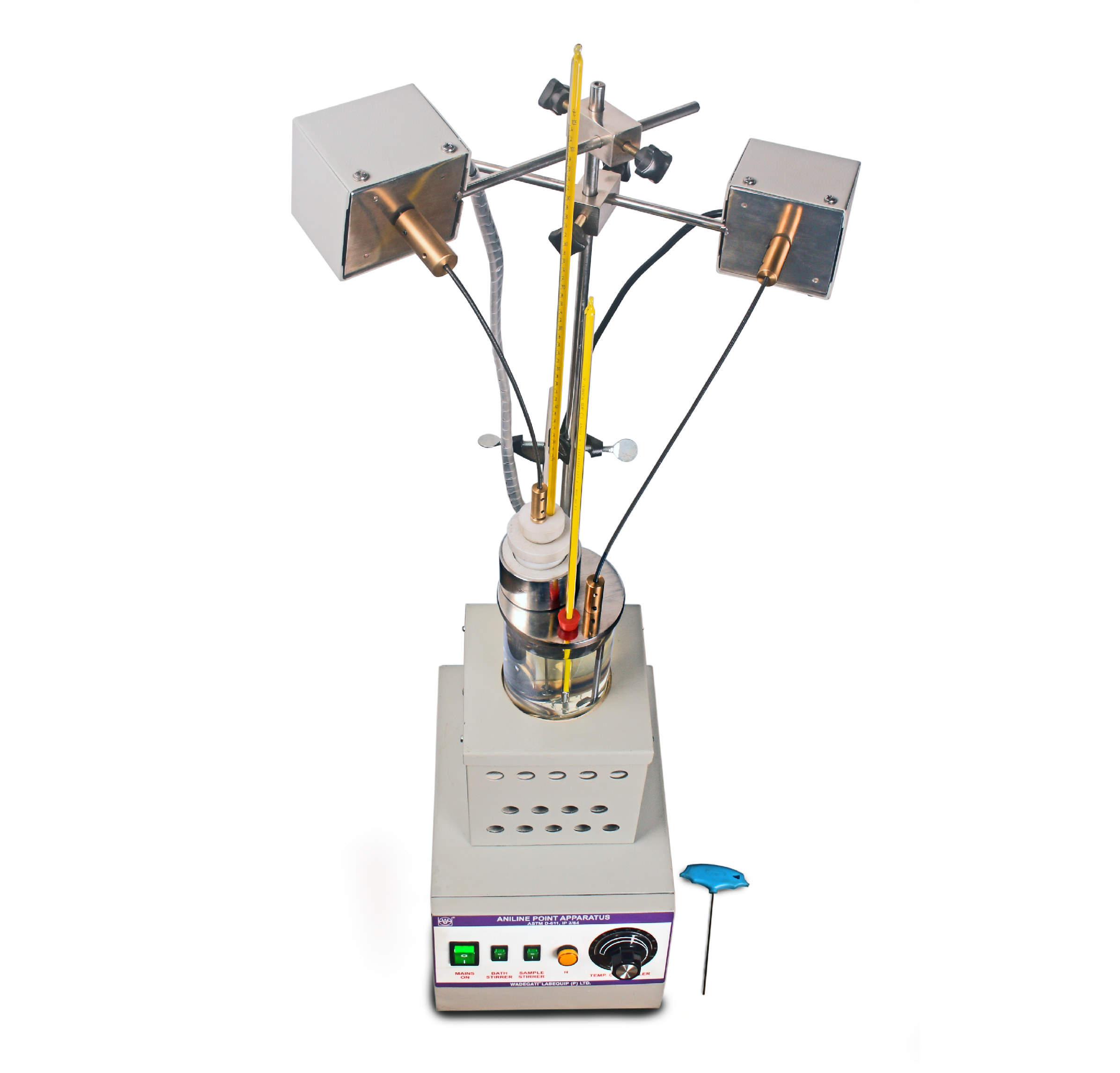

ANILINE POINT
ASTM D-611-07, IP 2/84, IS:1448 (P-3).
WIL–444
These test methods cover the determination of the aniline point of petroleum products and hydrocarbon solvents. Test Method A is suitable for transparent samples with an initial boiling point above room temperature and where the aniline point is below the bubble point and above the solidification point of the aniline-sample mixture.
Test Method A, is applicable to clear samples or to samples not darker than No.6.5 ASTM color, as determined by Test Method D-1500, having initial boiling points well above the expected aniline point. Complete with heat resistant beaker, jacket made of heat-resistant glass admeasuring 37 to 42mm in diameter and 175mm in length, test tube (sample tube) made of heat-resistant glass admeasuring 25mm in diameter and 150mm in length, motorized stirrer for oil bath and sample tube. The beaker is heated by
electrical heater with energy regulator control system. Certified thermometers ASTM 33C, 34C and 35C (1 No. each) are supplied.
Power supply: 230 +10% Volt AC, 1 Phase, 50 Hz.
