Key Features
-
Horizontal Tube Furnace with compact, low-weight design and high-grade insulation.
-
Working Size: 19 mm or 25 mm diameter x 600 mm length.
-
Temperature Range: 100°C to 1000°C ± 20°C.
-
Digital Micro-PID Controller with Cr/Al thermocouple sensor for precise temperature control.
-
Pressure Gauge: 0 to 100 psi for safe and accurate pressure monitoring.
-
Flow Meter (Rotameter): Measures airflow from 100 to 1000 ml/min for consistent testing.
-
Power Rating: 1200 W.
-
Power Supply: 230 ±10% Volt AC, 1 Phase, 50 Hz.

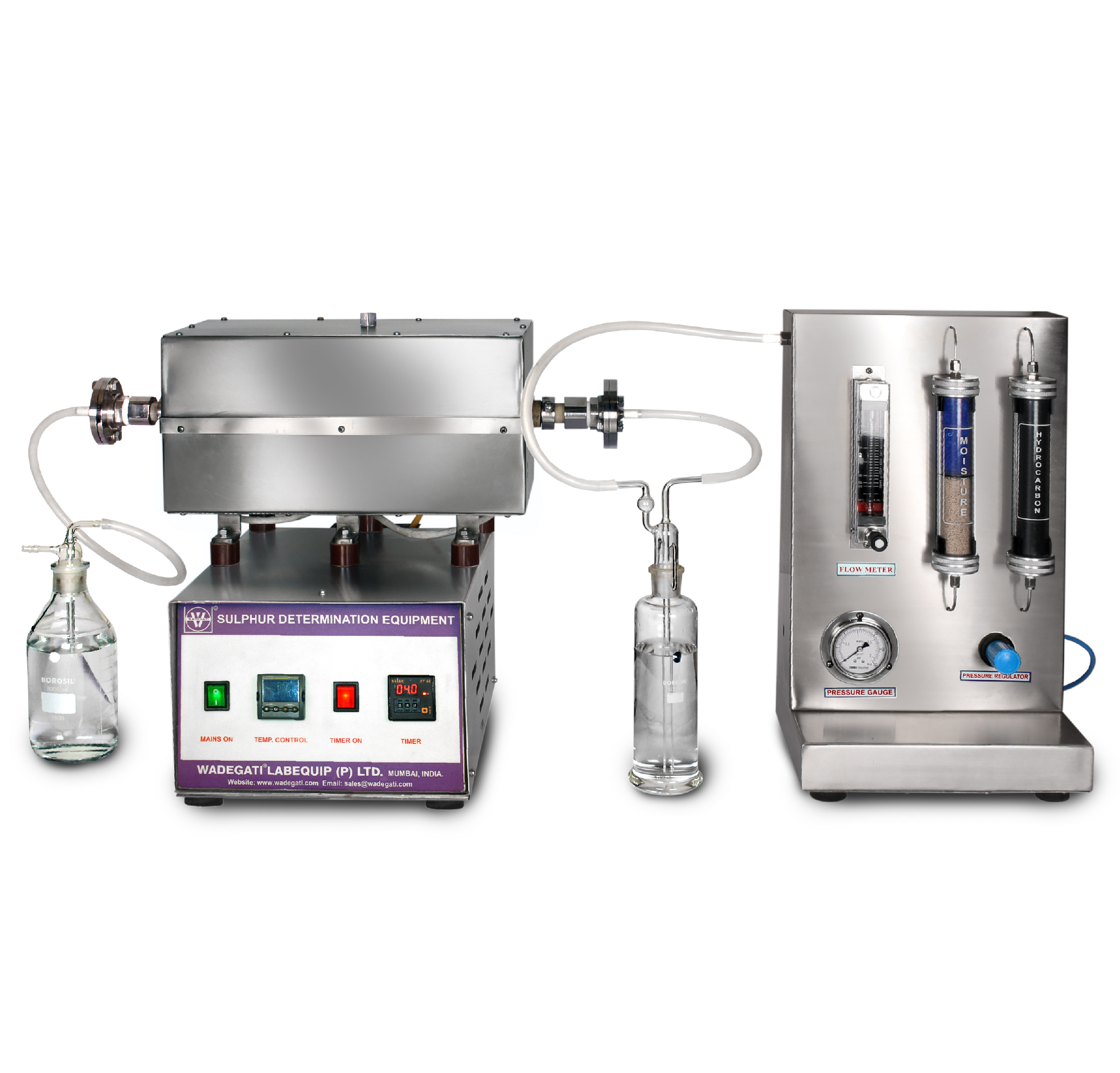

System Components
-
Tube Furnace: High-quality horizontal furnace with solid-state proportional controller and digital display.
-
Air/Moisture Filtering System: Includes pressure regulator, moisture absorber/filter, and flow control for clean and stable airflow.
-
Rotameter: Ensures accurate and constant airflow for proper sample combustion.
-
Inlet & Outlet Tubing: High-grade silicon tubing for safe gas handling.
Applications
-
Accurate sulphur determination in petroleum products, oils, and lubricants.
-
Suitable for research laboratories, QC departments, and industrial testing facilities.
Technical Specifications
-
Working Size: 19 mm or 25 mm dia x 600 mm length.
-
Temperature: 100°C to 1000°C.
-
Control: Micro-PID digital controller with thermocouple sensor.
-
Air Flow: 100 to 1000 ml/min.
-
Pressure Gauge: 0 to 100 psi.
-
Power: 230 V ±10%, Single Phase, 50 Hz.
