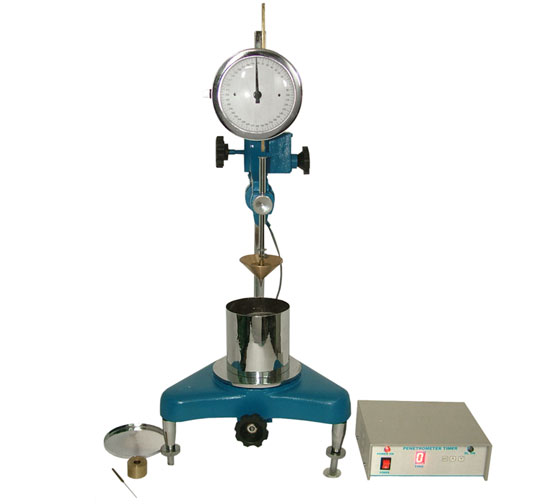

PENETROMETER WITH CONSTANT TEMPERATURE BATH

Key Features

• Precision Testing Range:

  • Penetration range: 0–400 units with 5-second digital timer for accurate readings.

• Robust Construction:

  • Aluminum base with geared movement arm and geared centric device for smooth operation.

• Standardized Components:

  • Bitumen sample container: Diameter 55mm, internal depth 35mm.

  • Highly polished stainless steel penetration needle as per IS:1203 specifications.

  • Includes 100g weights, base plate, transfer dish, and needle with dial.

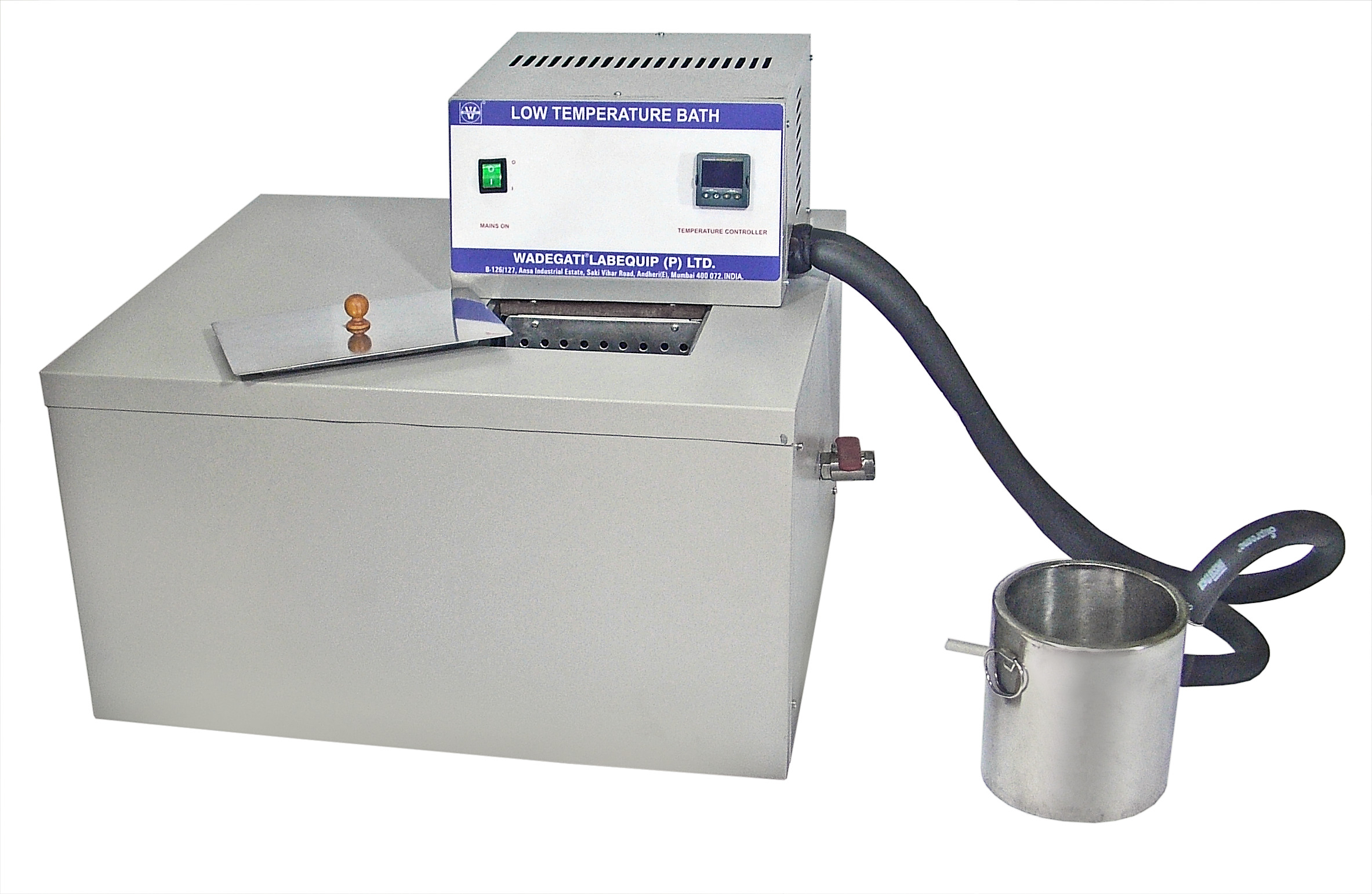

• Constant Temperature Circulatory Bath:

  • Made of stainless steel with PUF insulation to prevent heat loss.

  • Capacity: 10 liters with microprocessor-based PID temperature controller and PT-100 sensor.

  • Temperature range: +15°C to +40°C with CFC-free refrigeration system for eco-friendly cooling.

  • Includes thermo stirrer and centrifugal pump for uniform temperature.

Technical Specifications

• Bath Capacity: 10 Litres

• Temperature Accuracy: ±0.1°C

• Power Supply: 230 V ±10%, 1 Phase, 50 Hz

Why Choose Our Bitumen Penetration Test Apparatus?

• Fully compliant with IS:1203 standard for penetration testing.

• Superior build with accurate temperature control for consistent results.

• Energy-efficient and eco-friendly refrigeration system.
