OXIDATION STABILITY

Available Configurations

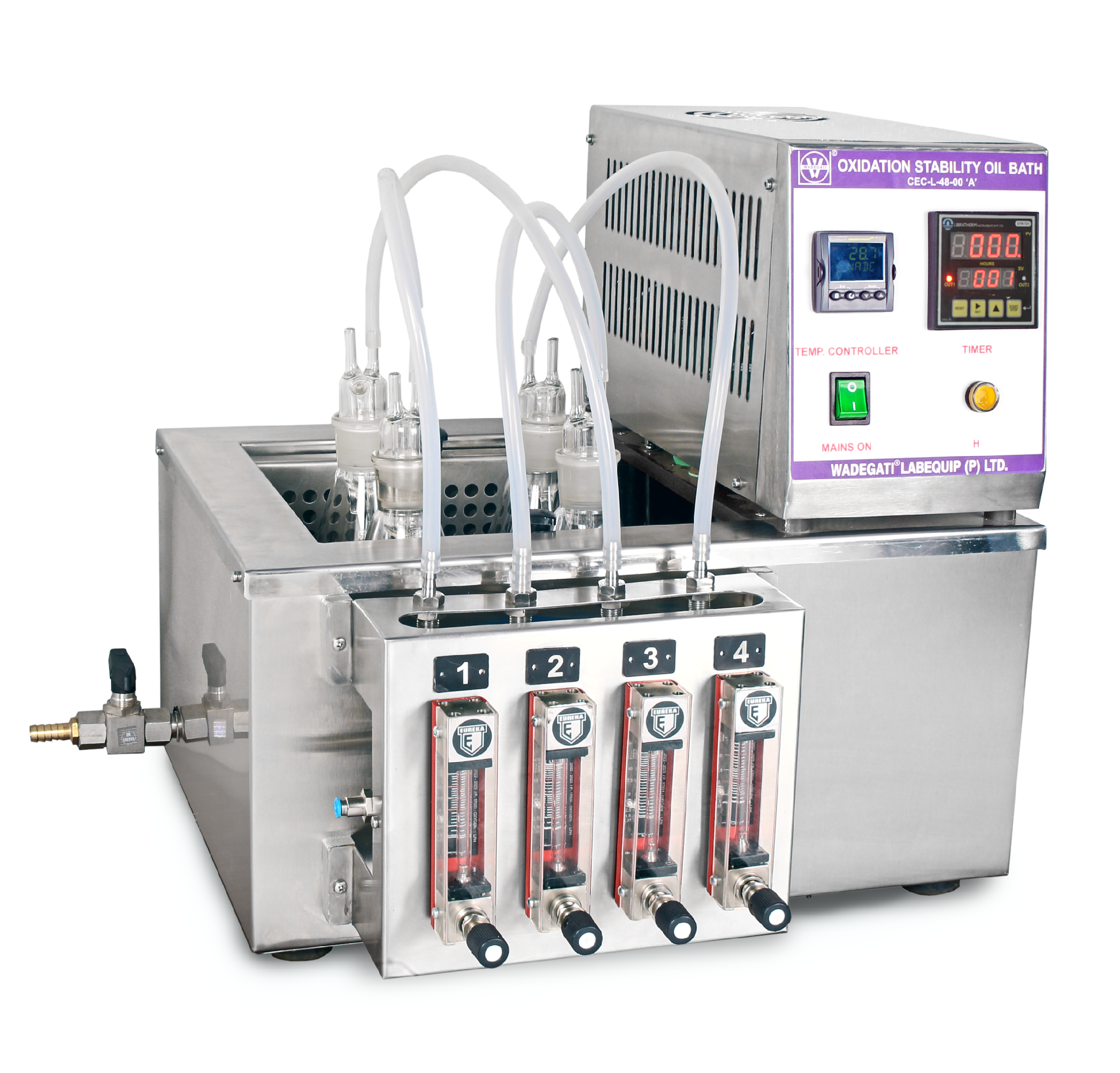

1. Oxidation Stability Heated Oil Bath (Wet Bath)

• Application: Testing four samples simultaneously

• Temperature Range: 40°C – 180°C with ±0.5°C stability

• Air Flow Rate: 10 ± 0.5 L/hr with 4 precision flow meters

• Supplied Glassware:

  • 500 ml Erlenmeyer Flask (CEC-48-0(A))

  • Air Supply Device with Drying Tower

  • 500 ml Graduated Cylinder

  • 100 ml Graduated Test Tube

  • Silicone Rubber Hose

• Power Supply: 220 V, 1 Phase, 50 Hz

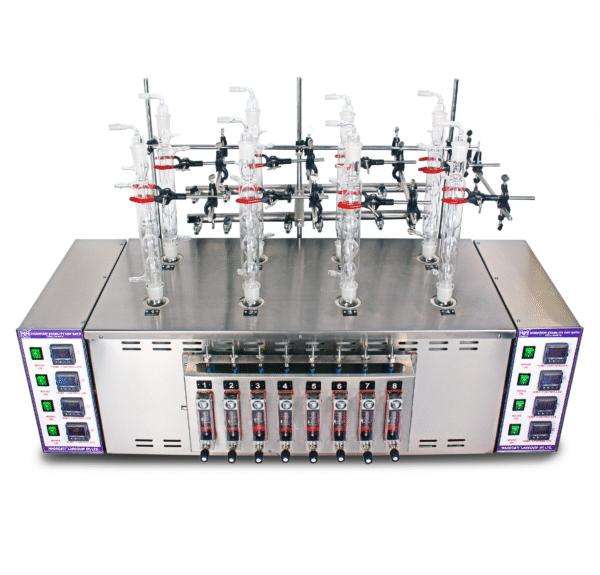

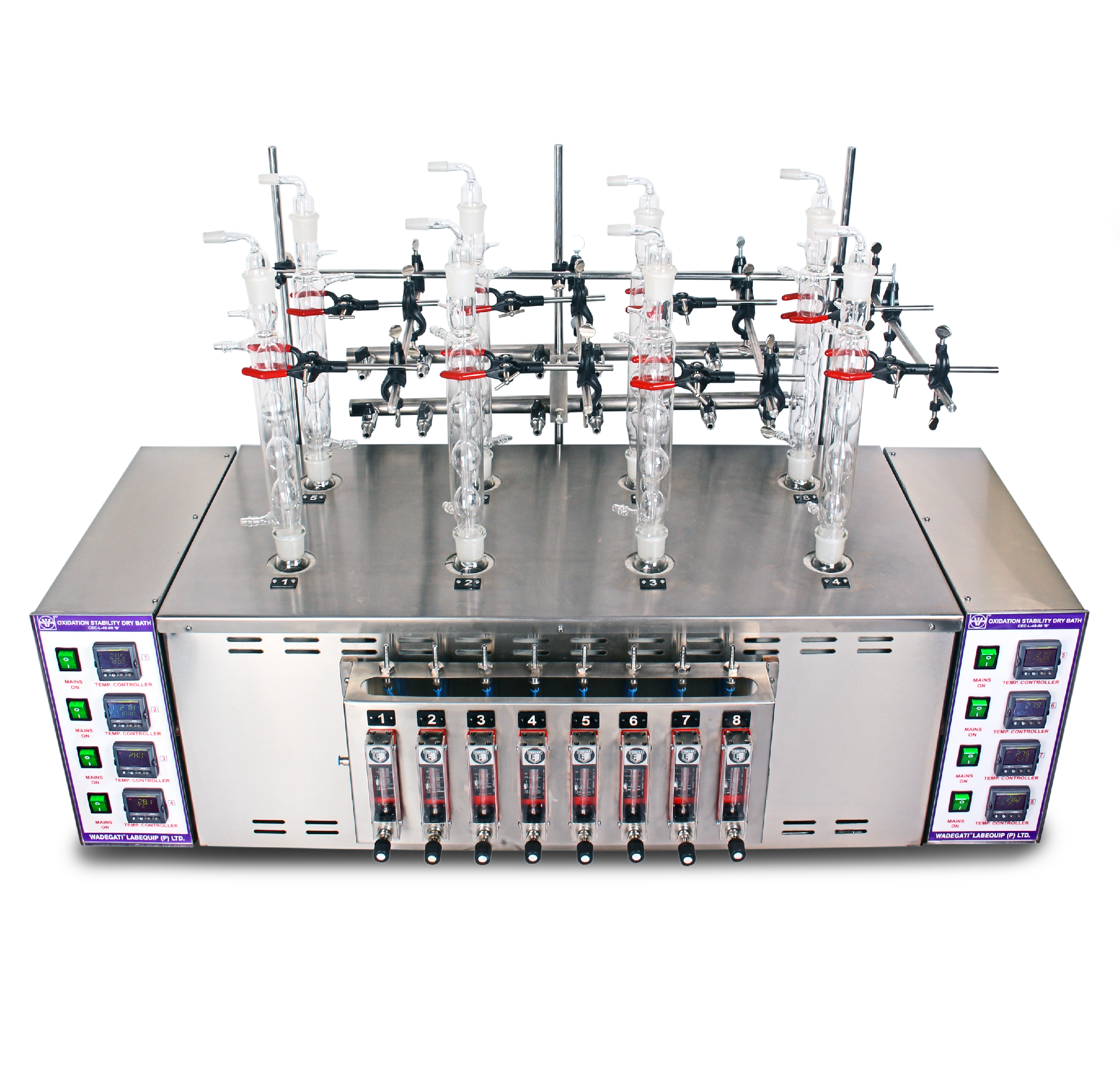

2. Oxidation Stability Dry Bath (Individual Tube Heater)

• Application: Testing eight samples independently

• Individual Control: Separate heaters, sensors & safety cut-off per position

• Temperature Range: 40°C – 180°C ±0.5°C stability

• Air Flow Rate: 5 ± 0.5 L/hr with 8 precision flow meters

• Flexible Operation: Same or different temperatures per position

• Supplied Glassware:

  • DKA B Test Tubes & Condensers

  • Air Delivery Tubes & Cork Stoppers

  • Support Rack for 12 Tubes

  • Lab Grade Air Pump with Dry Tower

  • Circulatory Chiller

• Power Supply: 220 V, 1 Phase, 50 Hz

Why Choose Our Oxidation Stability Testing Equipment?

✔ Compliant with CEC-48-0(A) standards
✔ Precise temperature control for accurate ageing simulation
✔ Multiple configurations: Wet Bath & Dry Bath for diverse lab needs
✔ Durable and reliable for heavy-duty testing environments
