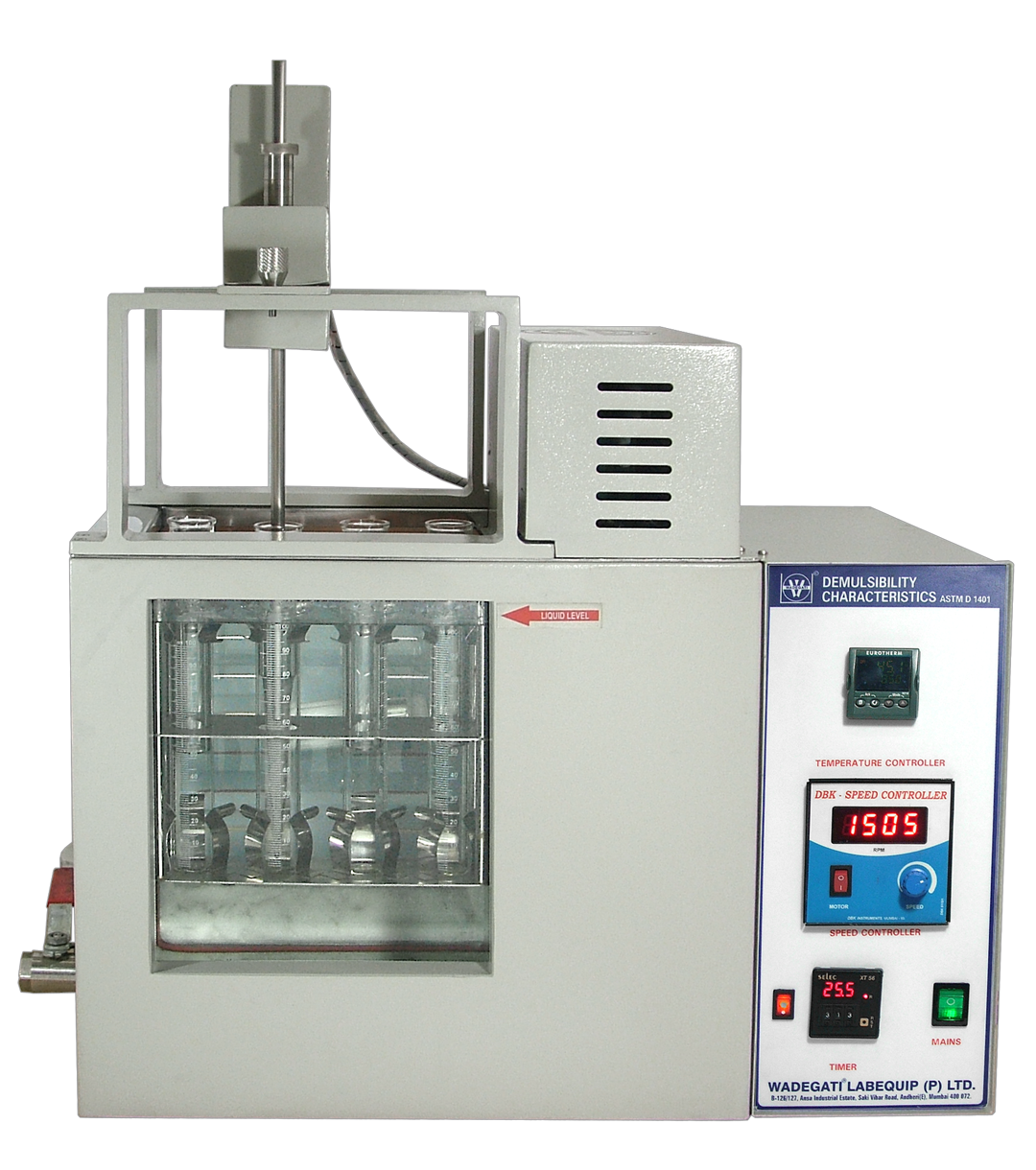

Key Features
-
High-Precision Design
-
Rectangular double-walled bath with toughened glass observation window (230W × 200H mm) for clear visibility.
-
Rear illumination for enhanced observation of separation.
-
-
Advanced Testing Mechanism
-
4-place Herschel Emulsifier for simultaneous testing of multiple samples.
-
Movable stirrer system for convenience – stirrer easily shifts to each position instead of moving samples.
-
-
Digital Control System
-
Microprocessor-based digital temperature, speed, and timer control.
-
Timer automatically stops the stirrer after 5 minutes with an audible alarm.
-
Technical Specifications
-
Temperature Range: Ambient to 100°C, ±0.5°C
-
Stirring Speed: Up to 1500 rpm, ±15 rpm
-
Observation Window: 230W × 200H mm toughened glass
-
Power Supply: 230 V AC, 1 Phase, 50 Hz
Applications
-
Petroleum-based lubricants
-
Synthetic fluids
-
Ideal for refineries, lubricant manufacturers, and quality control laboratories
