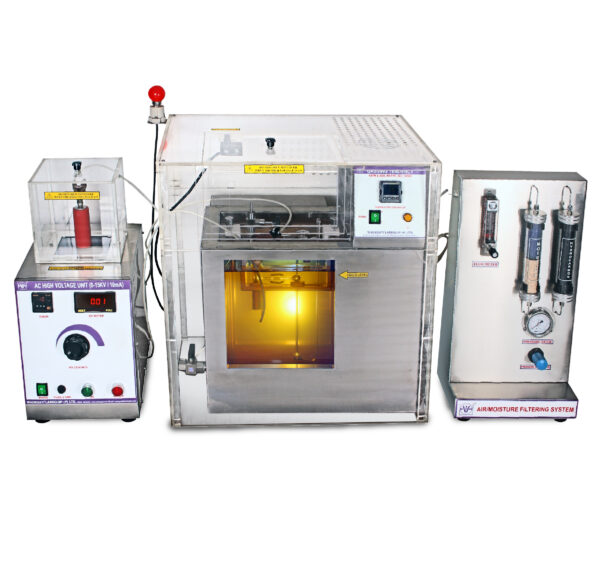

GASSING TENDENCY APPARATUS)

Key Features:

• ✅ Complies with ASTM D-2300, BS 5797:1986, IEC 628:1985

• ✅ Borosilicate glass gassing cell & gas burette (εr = 5 ± 0.2 at 80°C)

• ✅ Stainless steel HV electrode with capillary gas tubing

• ✅ Teflon support plug for optimal dielectric isolation

• ✅ Transparent constant temperature oil bath with digital control & circulation system

• ✅ Clear acrylic safety shield for operator protection

• ✅ High-voltage transformer: 15 kV / 10 mA, continuously variable, earth-referenced

• ✅ Digital kilovolt meter for accurate voltage monitoring

• ✅ Silica gel-based air/moisture filtering system with air flow meter

• ✅ Power supply: 230V ±10%, 1 Phase, 50 Hz

⚙️ Technical Specifications:

• Test Standards: ASTM D-2300, BS 5797:1986, IEC 628:1985

• Output Voltage: 0–15 kV AC, variable

• Transformer Capacity: 15 kV / 10 mA

• Electrode: Polished SS with gas capillary

• Oil Bath Temp Control: Digital PID, constant-temperature with circulation

• Run Time: 300 min ON / 30 min OFF duty cycle

• Safety: Transparent shield + air filtering unit

• Control Interface: Digital voltage meter and flow indicator

🧪 Applications:

• Gassing tendency analysis of transformer oils

• Quality control of insulating liquids

• Research on dielectric behavior under electrical stress

• Evaluation of gas-liquid interface discharge reactions
