Key Features:
-
✅ Conforms to ASTM D-2112, D-2272, IP 229, IS:12958-1990
-

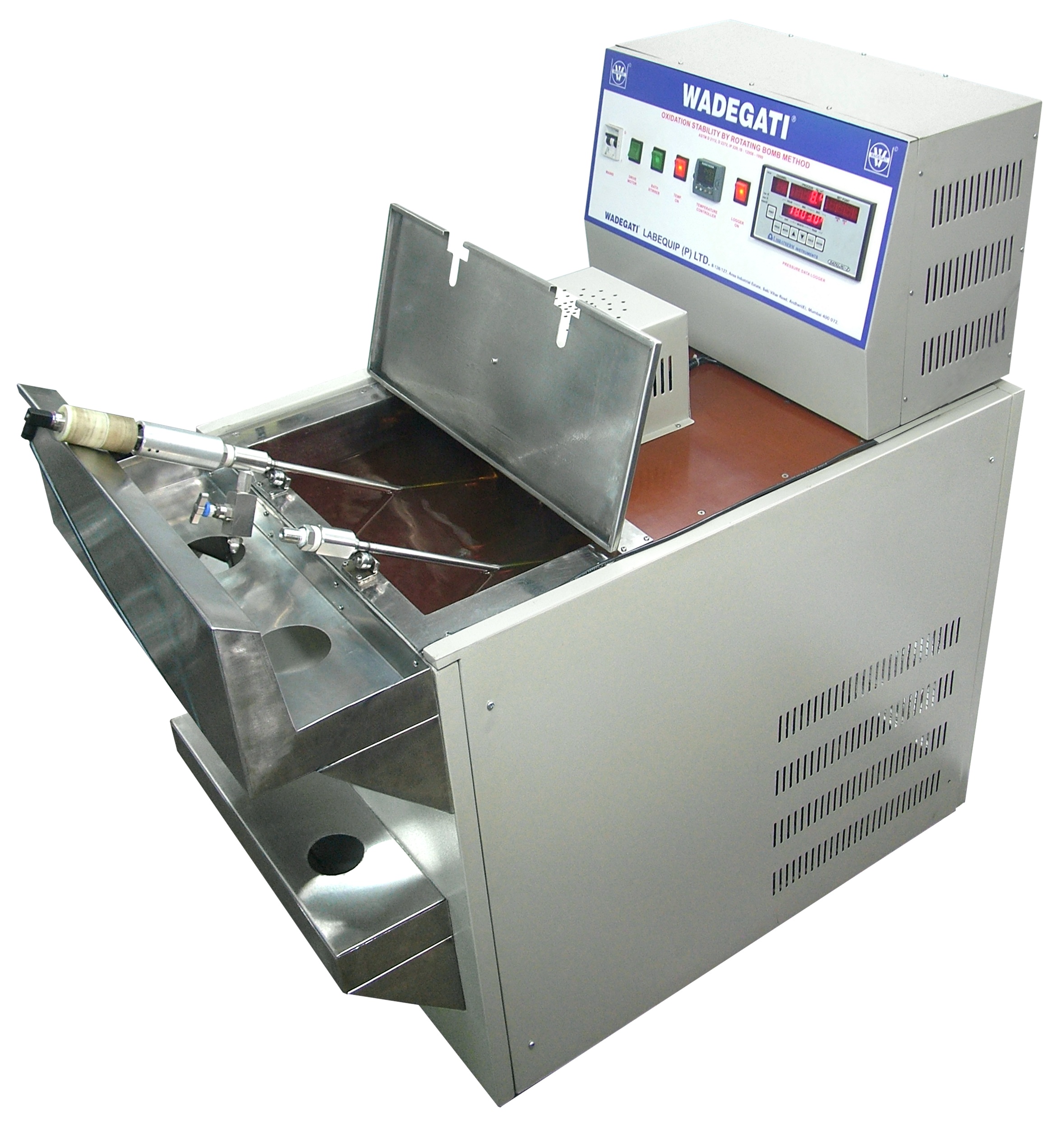

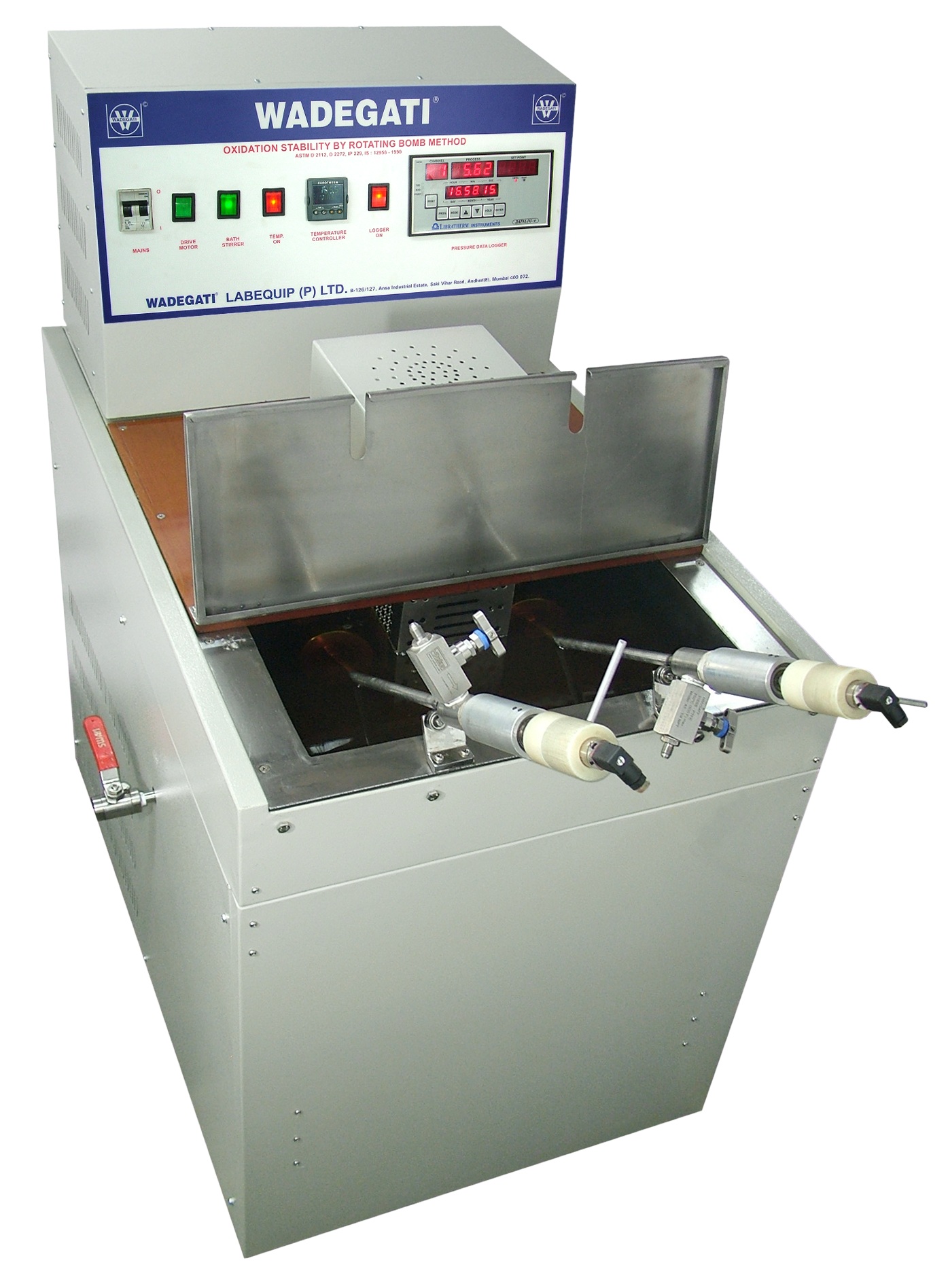

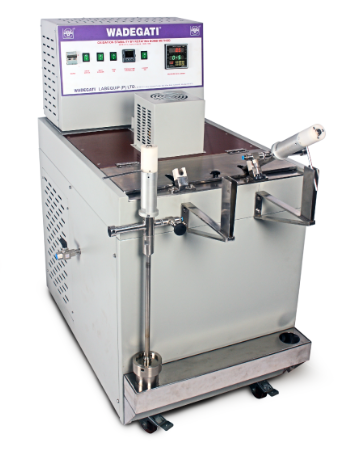

✅ Two-place rotating pressure vessel oil bath mounted on castors for easy mobility
-
✅ Digital PID temperature controller with safety mechanical fail-safe thermostat
-
✅ Heavy-duty motor rotates pressure vessels at a consistent 100 rpm
-

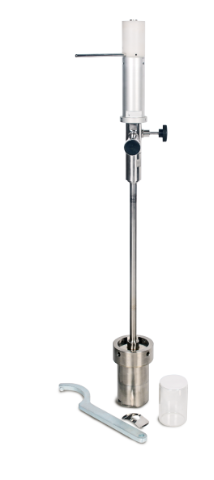

✅ Rotating pressure vessels are made of stainless steel with pressure transducer fittings
-
✅ Vessels held at a 30° angle for standard-compliant testing orientation
-
✅ Pressure range: 0–200 psi with digital pressure data logging
-
✅ Temperature range: Ambient to 200°C with electronic control
-
✅ Bath capacity: 70 litres with stainless steel inner chamber and top cover
-
✅ Automatic pressure logger with PC interfacing software (CD-ROM included)
-
✅ Supplied with ASTM 96C thermometer, catalyst wire, PTFE-covered glass liners, and ‘O’ rings
⚙️ Technical Specifications:
| Parameter | Specification |
|---|---|
| Standards | ASTM D-2112, D-2272, IP 229, IS:12958-1990 |
| Bath Capacity | 70 Litres (Stainless Steel) |
| Temperature Range | Ambient to 200°C |
| Pressure Mapping | 0–200 psi |
| Rotation Speed | 100 rpm (Fixed) |
| Vessel Angle | 30° |
| Motor Type | Heavy-duty drive motor (below oil bath) |
| Data Logger | Digital pressure logger with PC interface |
| Included Accessories | ASTM 96C thermometer, catalyst wire, PTFE-lined glass vessels, ‘O’ rings |
| Power Supply | 230V ±10%, 1 Phase, 50 Hz |
🧪 Applications:
-
Oxidation stability testing of turbine and engine oils
-
Quality control of lubricating and insulating oils
-
Predictive maintenance of industrial oils
-
Research and development in petroleum and energy sectors
