DISTILLATION APPARATUS

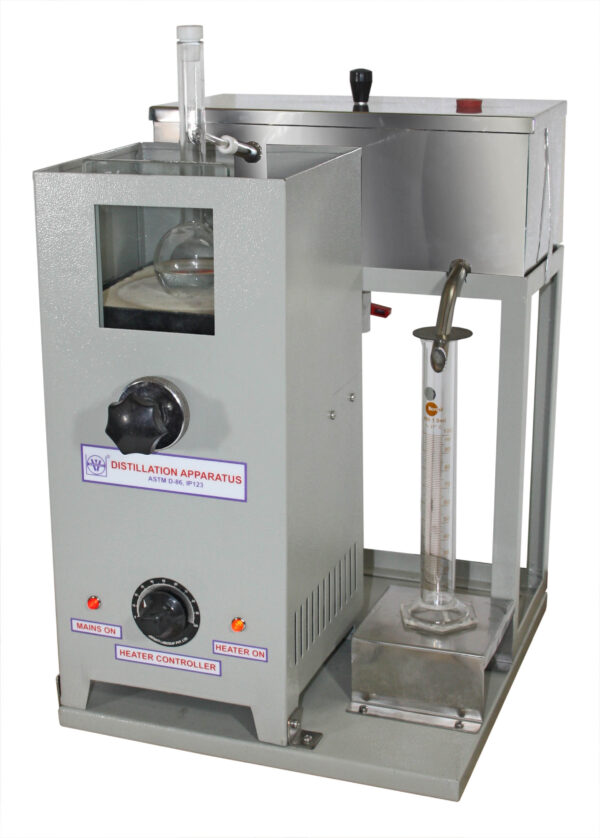

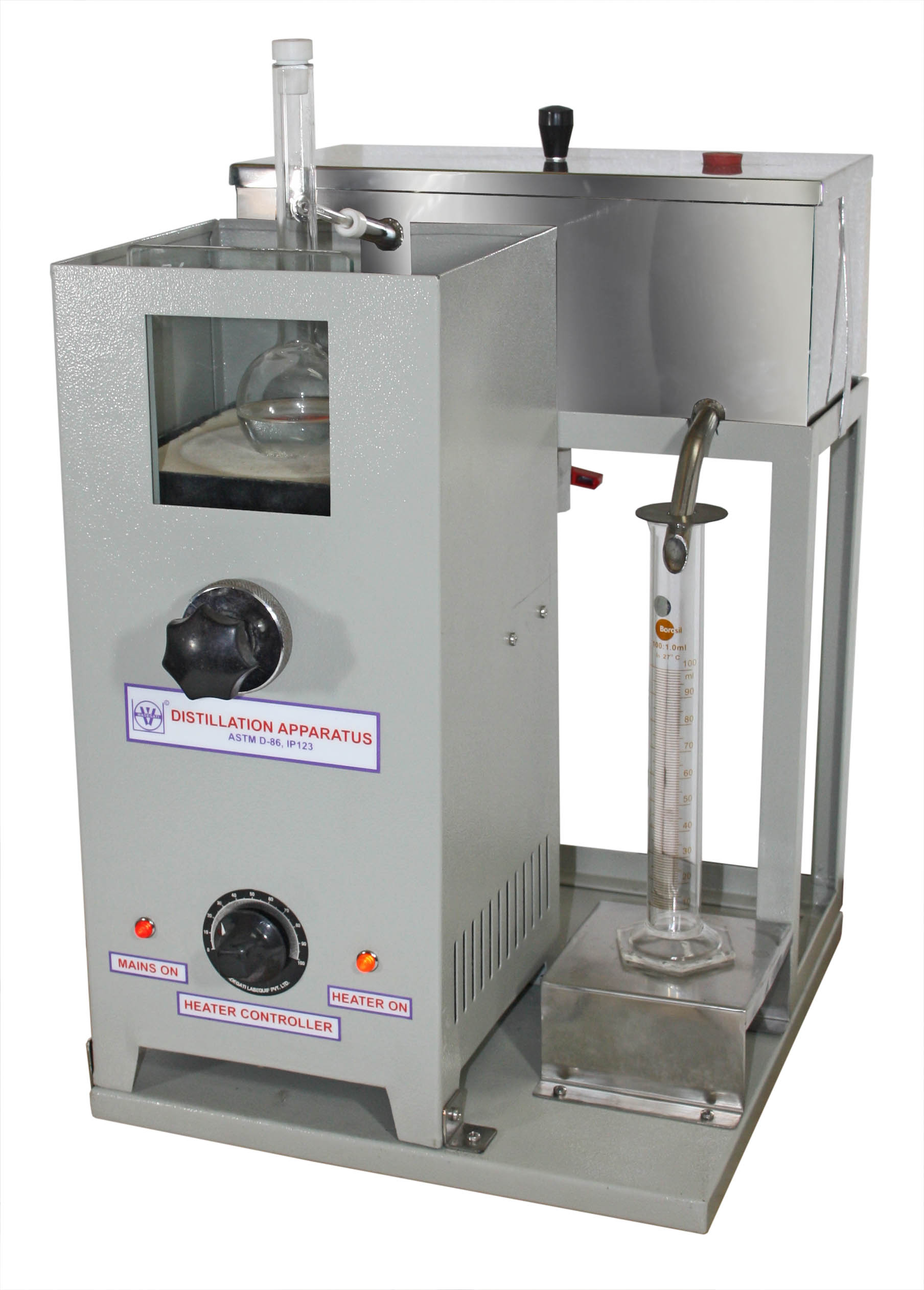

1. Single Distillation Apparatus

Model Compliance: ASTM D86 / IP123 / IS:1448, P-18
Key Features:

• Electric heating assembly with copper coil voltage variac temperature controller

• Ceran Glass heater boards with central holes (38mm & 50mm diameter)

• Non-refrigerated cooling bath, 125ml distillation flask, and 100ml graduated cylinder

• Supplied with ASTM 7C & 8C thermometers with calibration certificates
  Power Supply: 230V ±10%, 1 Phase, 50 Hz
  Dimensions:

• Equipment: 45 x 50 x 60.5 cm

• Shipping: 55 x 60 x 70 cm

• Net Weight: 40 kg | Shipping Weight: 65 kg

---

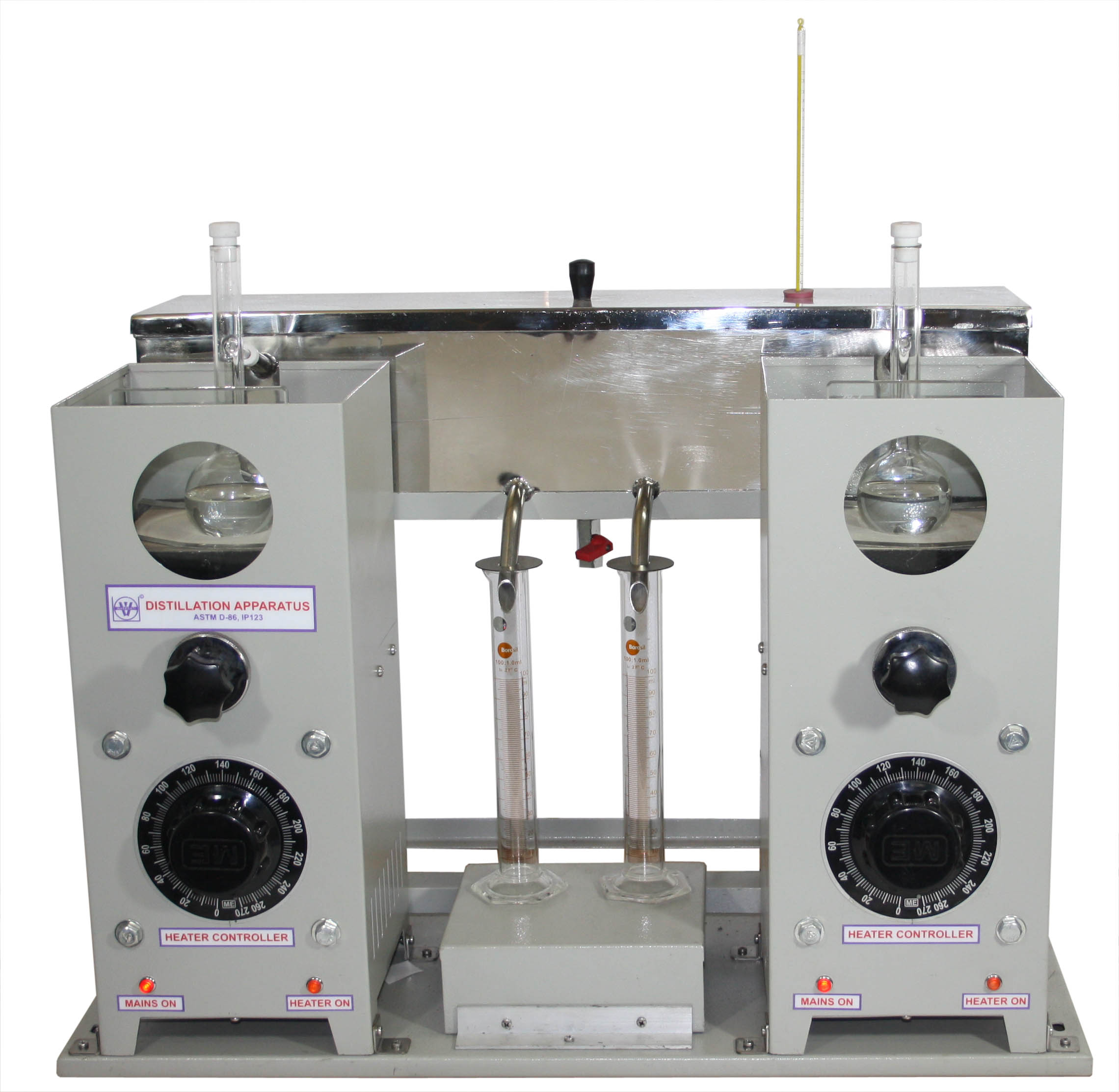

2. Twin Distillation Apparatus

Model Compliance: ASTM D86 / IP123 / IS:1448, P-18
Key Features:

• Dual-unit version with same configuration as the single distillation setup

• Doubles productivity for simultaneous testing

• Integrated electric heating with variac control and Ceran Glass platform

• Power Supply: 230V ±10%, 1 Phase, 50 Hz


---

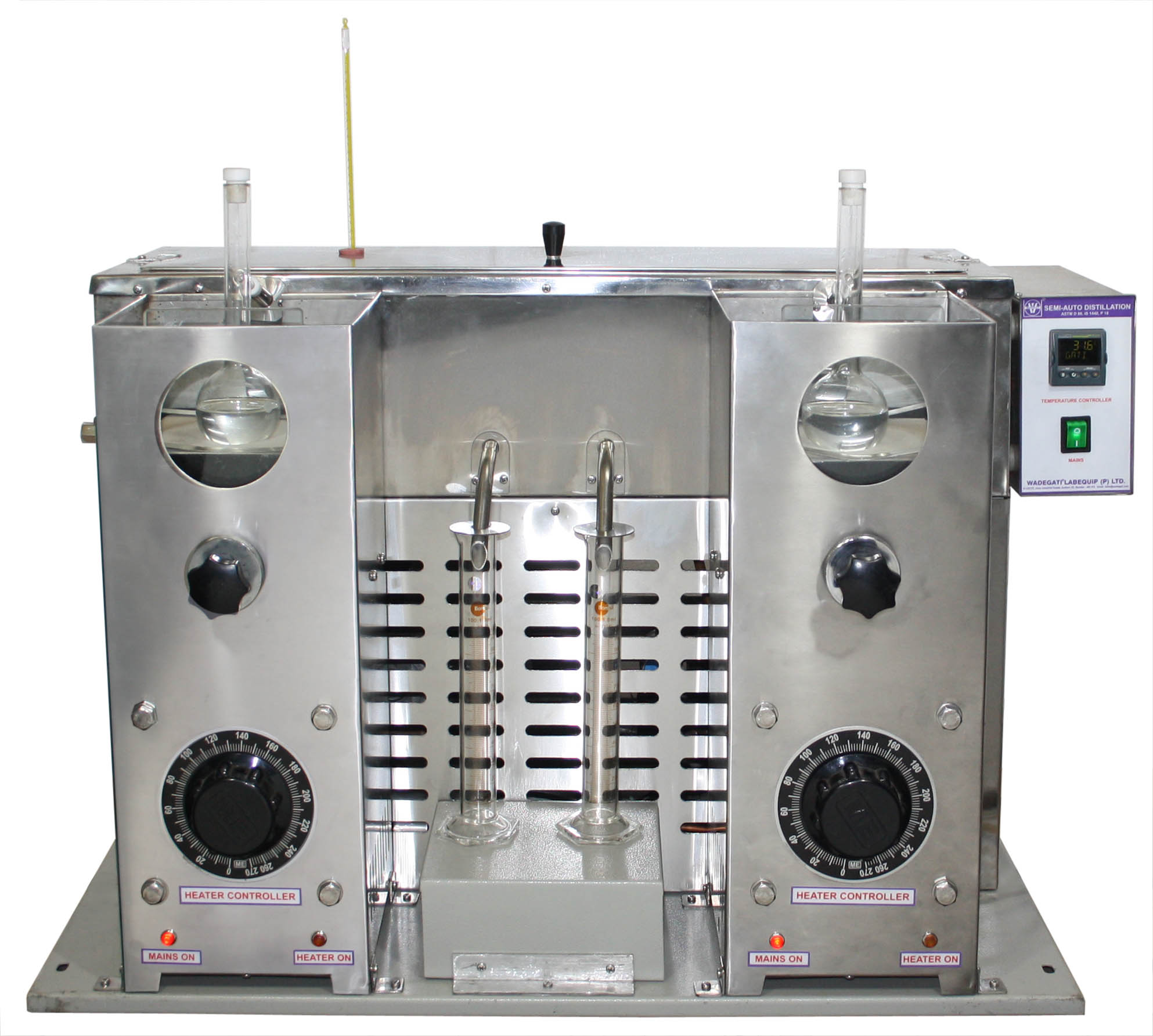

3. Semi-Automatic Twin Distillation Apparatus (Refrigerated Cooling)

Advanced Petroleum Distillation Unit
Model Compliance: ASTM D86 / IP123 / IS:1448, P-18

Key Features:

• Twin test system with motorized flask lift and geared heater assembly

• Refrigerated stainless steel condenser tank with integrated cooling and heating (40°C to 60°C)

• Microprocessor-based PID temperature controller with PT-100 sensor and dual display

• High-efficiency condenser made from seamless stainless-steel tubing

• Heavy-duty design with powder-coated MS shield, toughened glass window, and indicator lamp

• Adjustable platform made of Ceran Glass with central openings (38mm & 50mm)

• Glassware: 125ml distillation flasks and 100ml receiving cylinders made from heat-resistant borosilicate glass, with Teflon corks

• IP 5C & IP 6C thermometers supplied with certification

Temperature Range: ±4°C to ±60°C
Power Supply: 230V ±10%, 1 Phase, 50 Hz

---

Why Choose Our Distillation Apparatus?

• Fully standards-compliant with ASTM, IP, and IS specifications

• Ideal for refineries, QC labs, petrochemical R&D, and academic institutions

• Robust build with precision temperature control, ensuring accurate test results

• Reliable performance and long service life, backed by technical support
