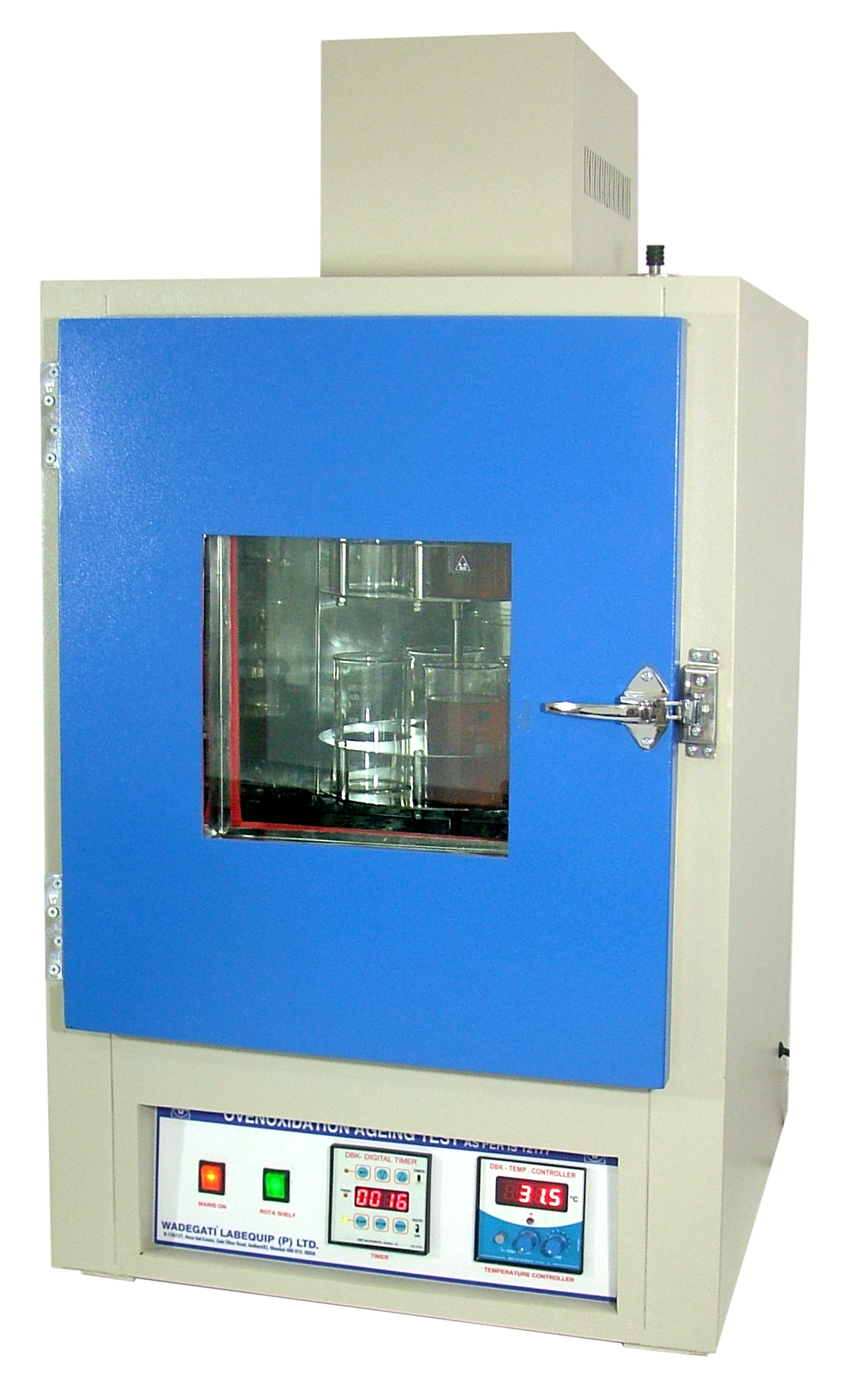

AGEING OVEN

Key Features:

• ✅ Conforms to IS:12177-1987, Method A

• ✅ Open beaker oxidative ageing method

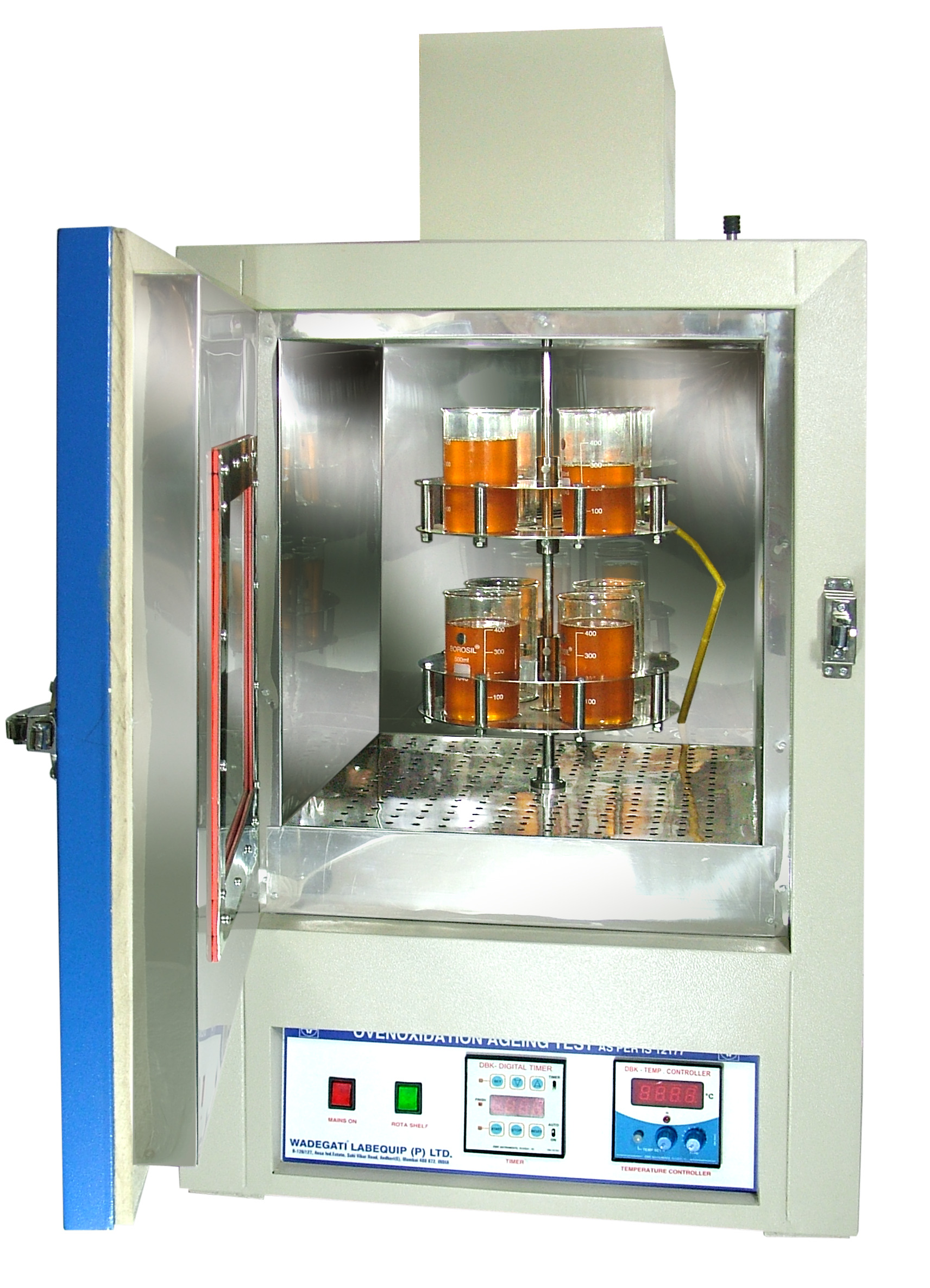

• ✅ Accommodates 8 x 400 ml glass beakers

• ✅ Microprocessor-based PID temperature controller with programmable timer

• ✅ Rotating shelves powered by heavy-duty geared motor (2 RPM)

• ✅ Front-opening chamber with toughened glass viewing window

• ✅ Uniform airflow: 8–20 air changes per hour via forced air circulation

• ✅ Temperature range: Ambient to 150°C ± 2°C

• ✅ Power supply: 230V ±10%, 1 Phase, 50 Hz

🧪 Applications:

• Oxidative ageing analysis of lubricating oils

• Conformance testing as per IS:12177 standard

• Quality assurance in lubricant and petroleum industries

• Research and development of oil formulations

⚙️ Technical Specifications:

• Standard: IS:12177-1987, Method A

• Sample Capacity: 8 x 400 ml glass beakers

• Temperature Control: PID with pre-set timer

• Shelf Rotation Speed: Fixed at 2 RPM

• Chamber Ventilation: 8 to 20 air changes per hour

• Construction: Toughened glass viewing window with front-opening access
