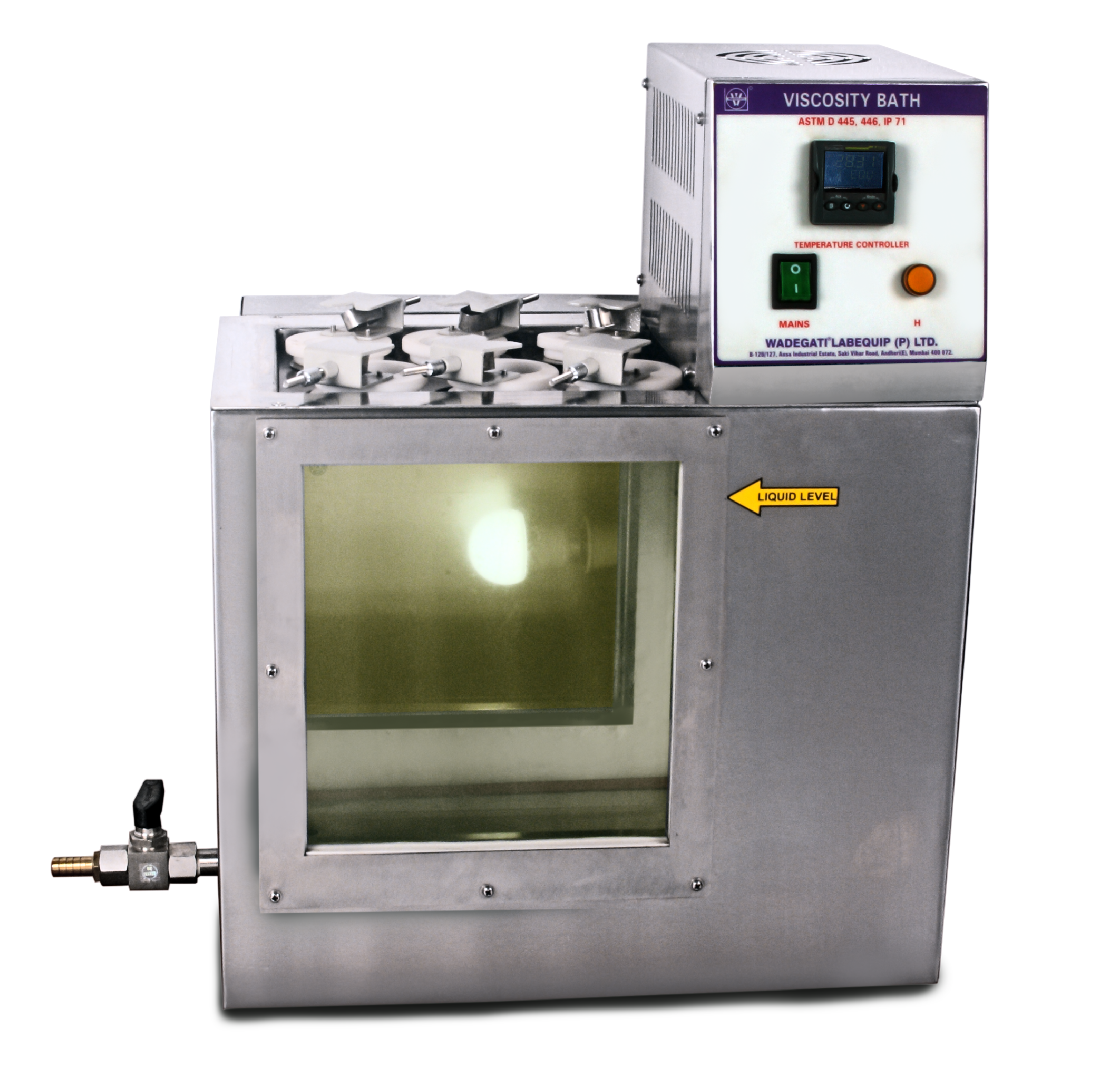

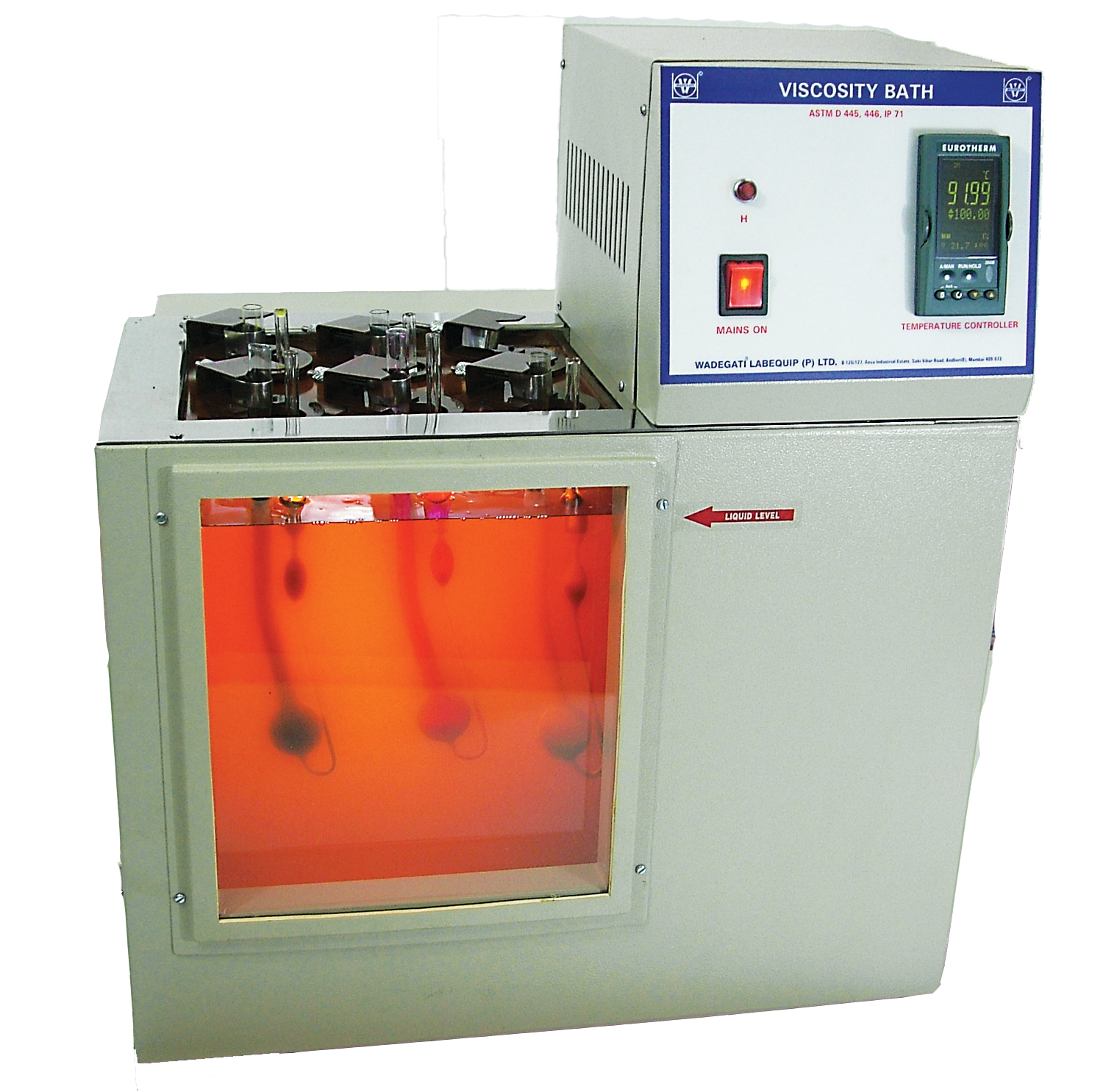

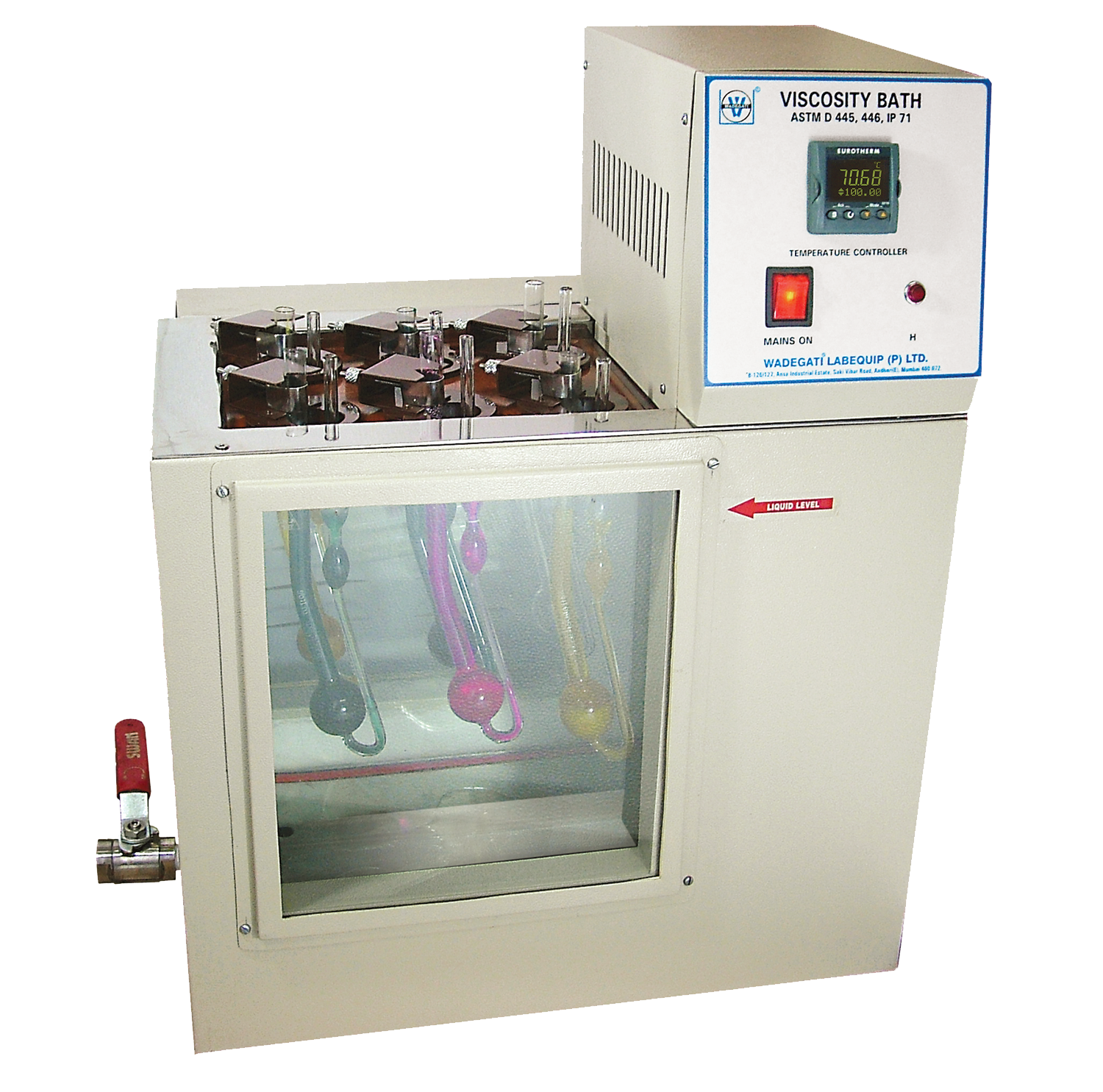

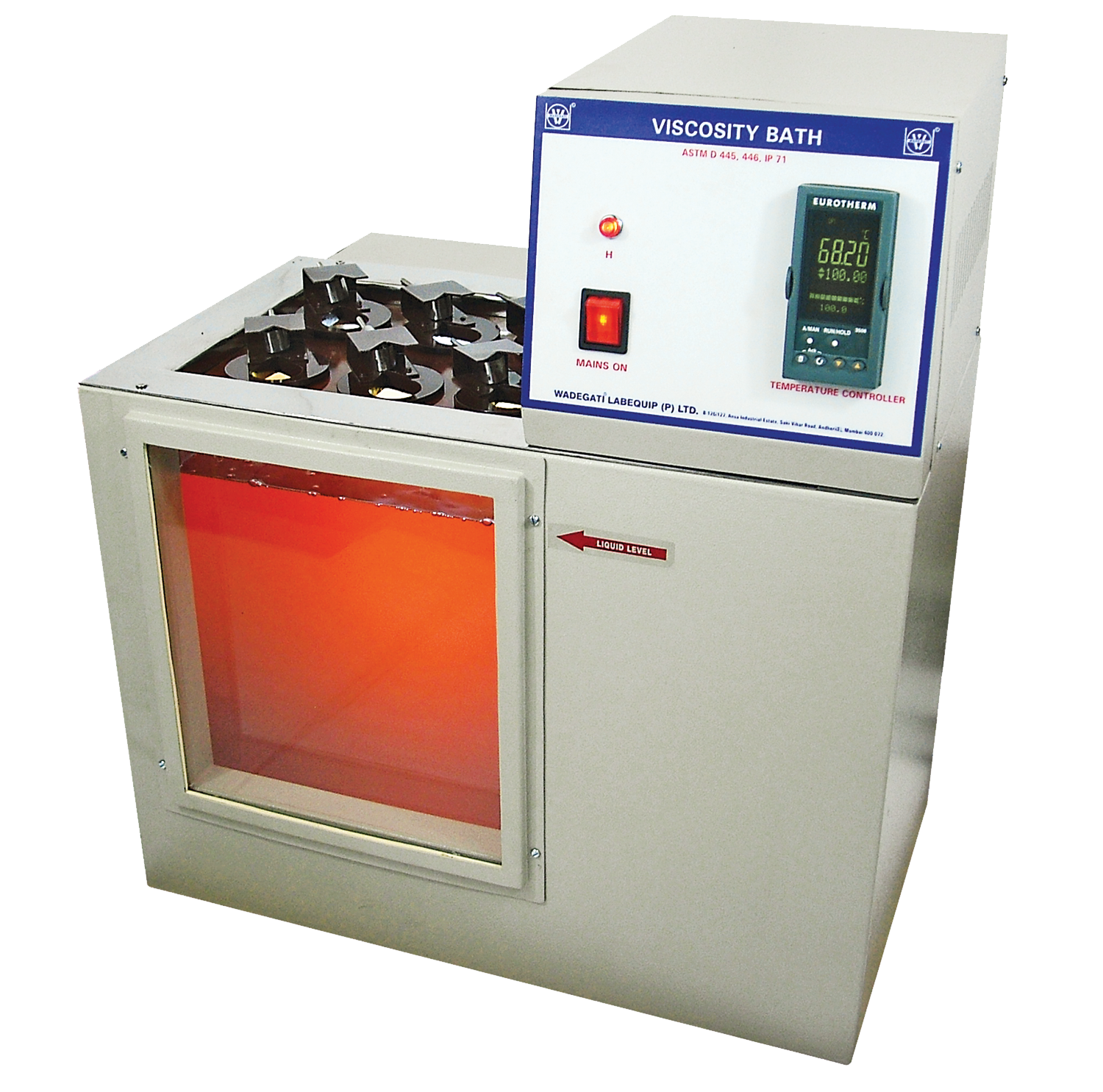

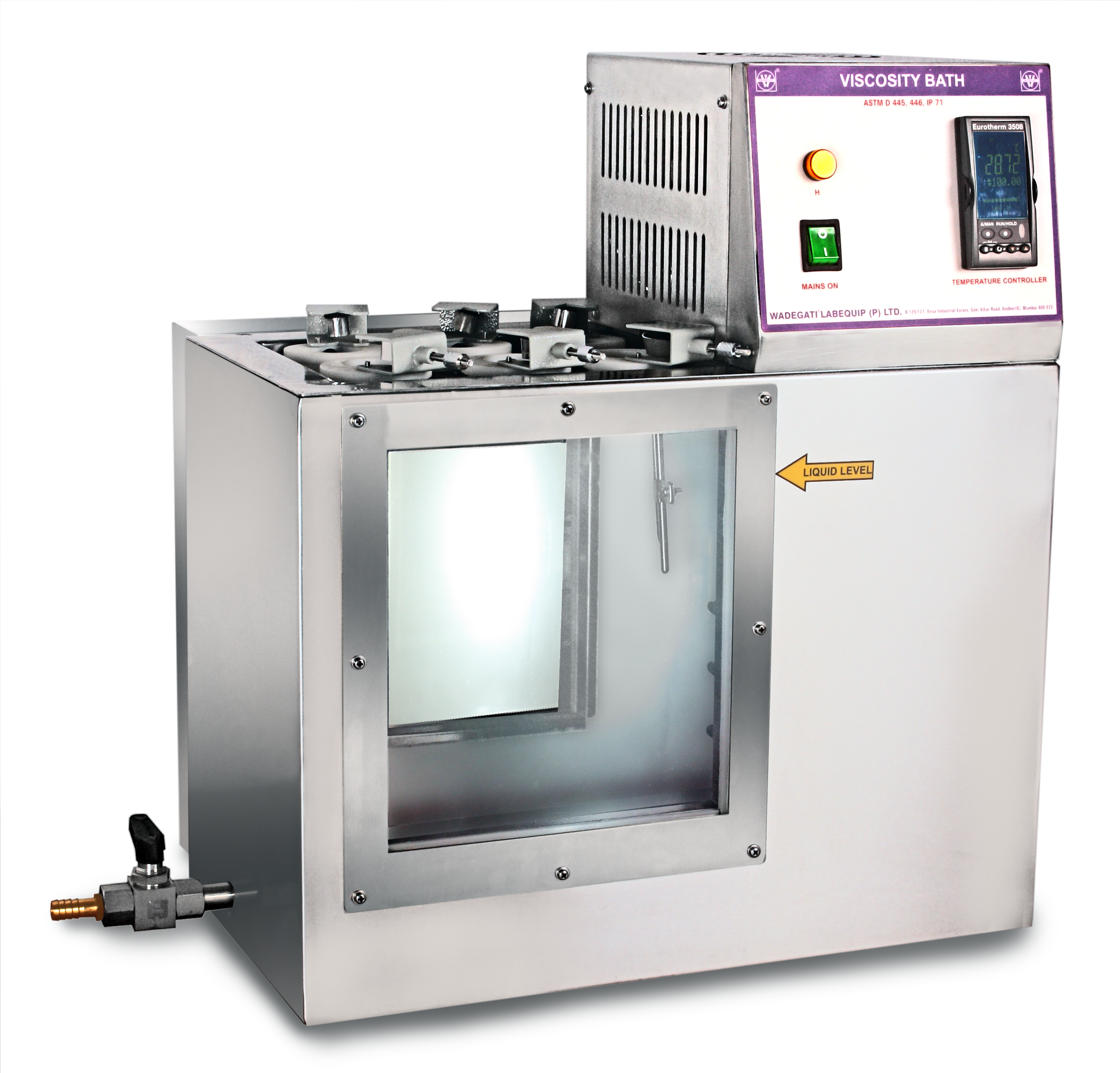

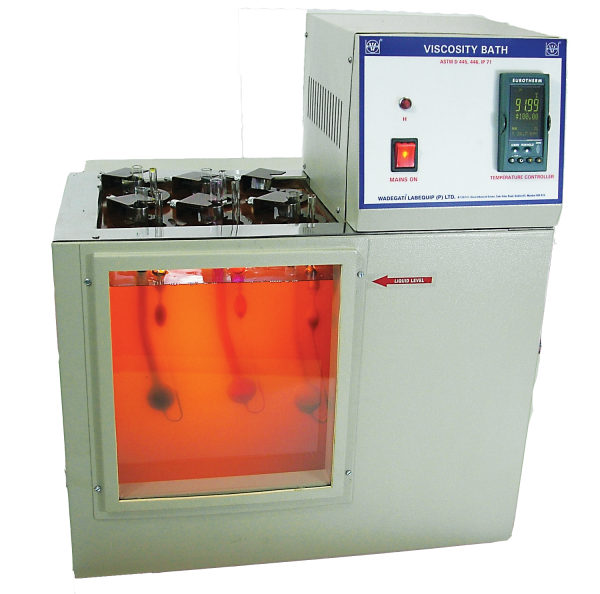

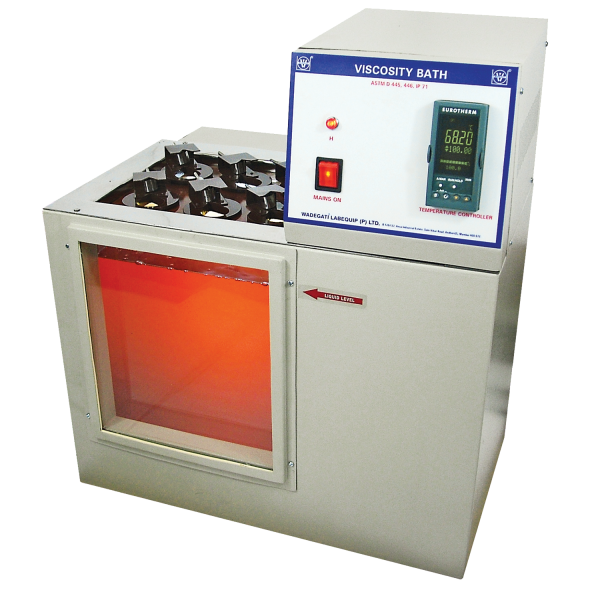

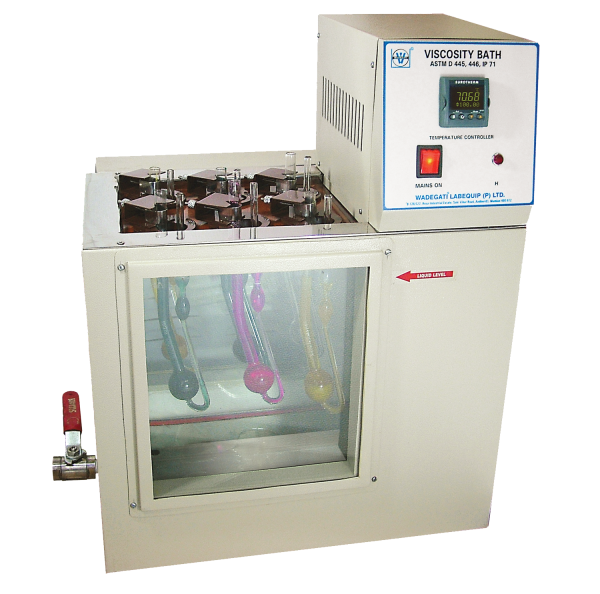

VISCOSITY BATH

As per ASTM D-445, ASTM D-446, IP 71, DIN 51 55.



Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.
  • Rectangular model having double walled construction with toughened glass observation window (254 W x 225 H mm).
  • Illumination from rear side provided.
  • Oil immersion heater.
  • Bath opening 254 x 200 mm with cover having 6 openings of 50 mm in diameter to hold 6 viscometers with six bakelite holders.
  • Liquid capacity 22 Litres.
  • Microprocessor based PID temperature controller with PT-100 & digital read out, resolution, temperature accuracy of 0.1°C & 0.02°C.
  • Efficient stirring system
  • Temperature : 40°C & 100°C.
  • Power supply : 230 V, 1 Phase, 50 Hz.
