TOTAL SEDIMENT ANALYSER

Key Features

• Test Standards: ASTM D-4870, IP 375, ISO 10307-2 (Procedure A)

• Accurate determination of sediment content in residual fuels

• Ideal for refineries, petroleum product testing labs, and research facilities

Technical Specifications

• Digitally Controlled Oil Bath:

  • Micro-PID controller with integrated heating and circulation system

  • Four air wells designed per standard dimensions

  • Built-in 99-hour timer with auto cut-off

• Glass Air Condensers: 8 units as per test method

• Conical Flasks: 6 units, 50 ml capacity, ISO:3733 compliant

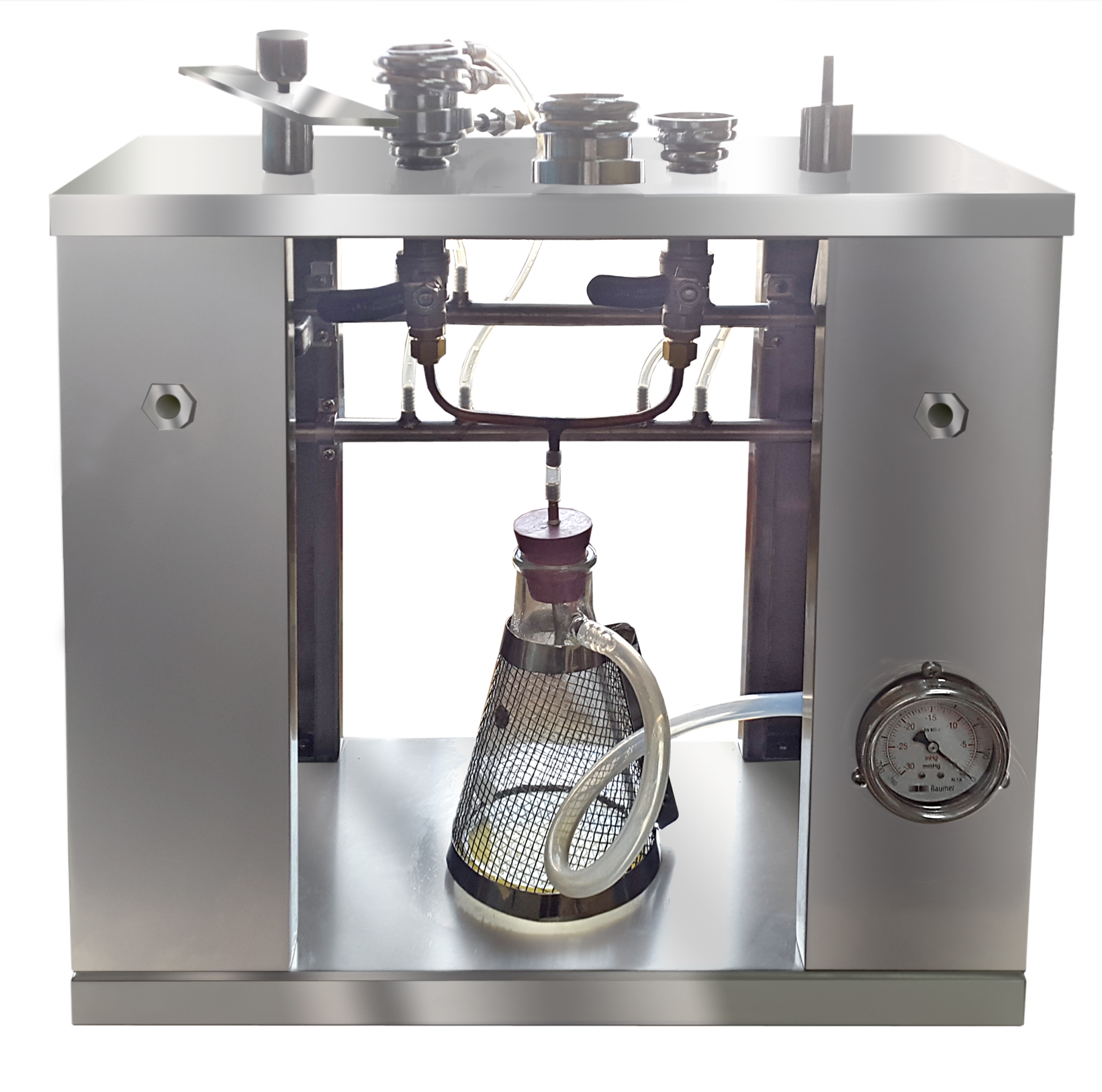

• Filtration Assembly:

  • Two filtration cells with steam heating and water cooling circuits

  • Vacuum circuit with gauge and safety-protected Buchner flask

  • Brass cups with sintered brass disc for microfiber filter support

• Temperature Control: Maintains 100 ±1°C with steam heating

• Glass Fiber Filters: Whatman GF/A or equivalent (2 packs)

• Power Supply: 230V ±10%, 1 Phase, 50 Hz

Package Includes

• Ageing bath with PID control

• Filtration assembly with heating, cooling & vacuum system

• Condensers, glassware, and microfiber fil

• ter packs



Why Choose Our ASTM D-4870 Test Apparatus?

✔ Fully compliant with ASTM, IP, and ISO standards
✔ Durable and precision-engineered for long-term reliability
✔ Advanced temperature control for accurate sediment testing
✔ Complete system for ageing and filtration process
