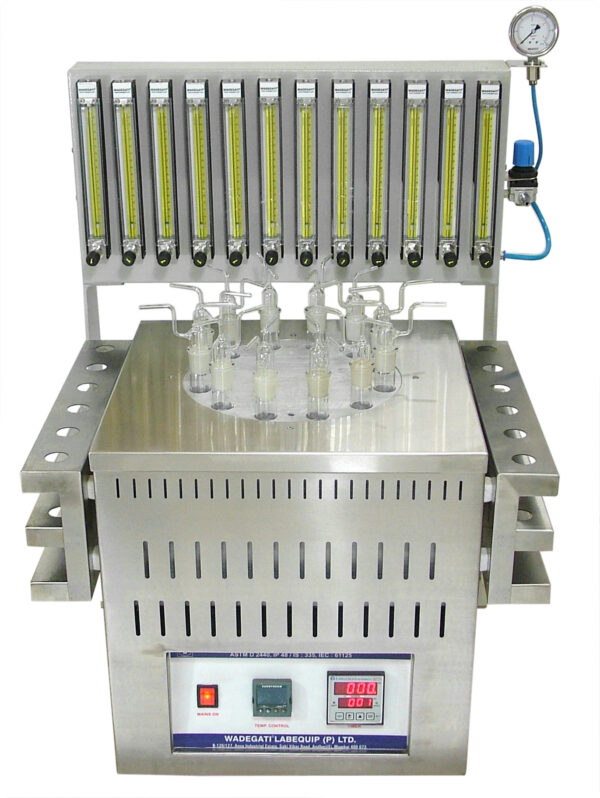

OXIDATION STABILITY DRY BATH

Key Features:

• ✅ Complies with IEC 61125, Annexure C, Method C

• ✅ 12/24-position solid aluminum alloy dry bath for parallel sample processing

• ✅ Precisely machined oxidation tube holders for uniform test conditions

• ✅ Microprocessor-based PID temperature controller with digital timer

• ✅ Accurate air flow regulation via flow meters with needle valve

• ✅ Flow rate: 0.15 LPH ± 0.015 LPH

• ✅ Temperature range: 50°C to 375°C ± 0.5°C

• ✅ Power supply: 230V ± 10%, 1 Phase, 50 Hz

🧪 Applications:

• Oxidation stability testing of insulating and mineral oils

• Quality control and performance benchmarking in transformer oil testing

• R&D laboratories in electrical, petrochemical, and lubricant industries

⚙️ Technical Specifications:

• Standard Compliance: IEC 61125, Method C

• Sample Capacity: 12 or 24 samples

• Material: Solid aluminum alloy block

• Controller: Digital PID with programmable timer

• Temperature Accuracy: ±0.5°C

• Air Flow Control: Precision flow meters and needle valves
