Key Features:
-
✅ Designed for volatile matter analysis in coal and coke
-
✅ High-temperature control up to 950°C ± 20°C for consistent test conditions
-
✅ Vertical tube furnace construction for optimized thermal efficiency
-
✅ Compact muffle size: 2” diameter × 12” length
-
✅ Robust and durable heating elements for long service life
-
✅ Single-phase power supply: 230 ±10% V AC, 50 Hz
-
✅ Ideal for fuel laboratories, research institutions, and quality control labs
⚙️ Technical Specifications:
| Parameter | Specification |
|---|---|
| Application | Volatile matter determination in coal/coke |

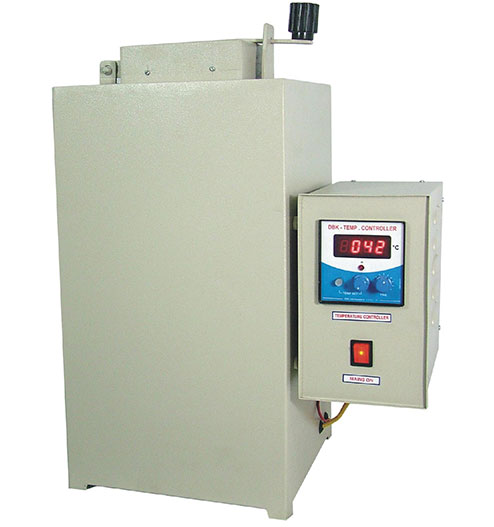

| Furnace Type | Vertical electric tube furnace |
| Temperature Range | Maintains 950°C ± 20°C |
| Muffle Size | 2” (diameter) × 12” (length) |
| Power Supply | 230 V ±10%, 1 Phase, 50 Hz |
🧪 Applications:
-
Determination of volatile matter in coal and coke
-
Fuel characterization in power plants, cement industries, and metallurgy
-
Quality control in coal preparation plants
-
Research studies in thermal degradation and combustion properties
