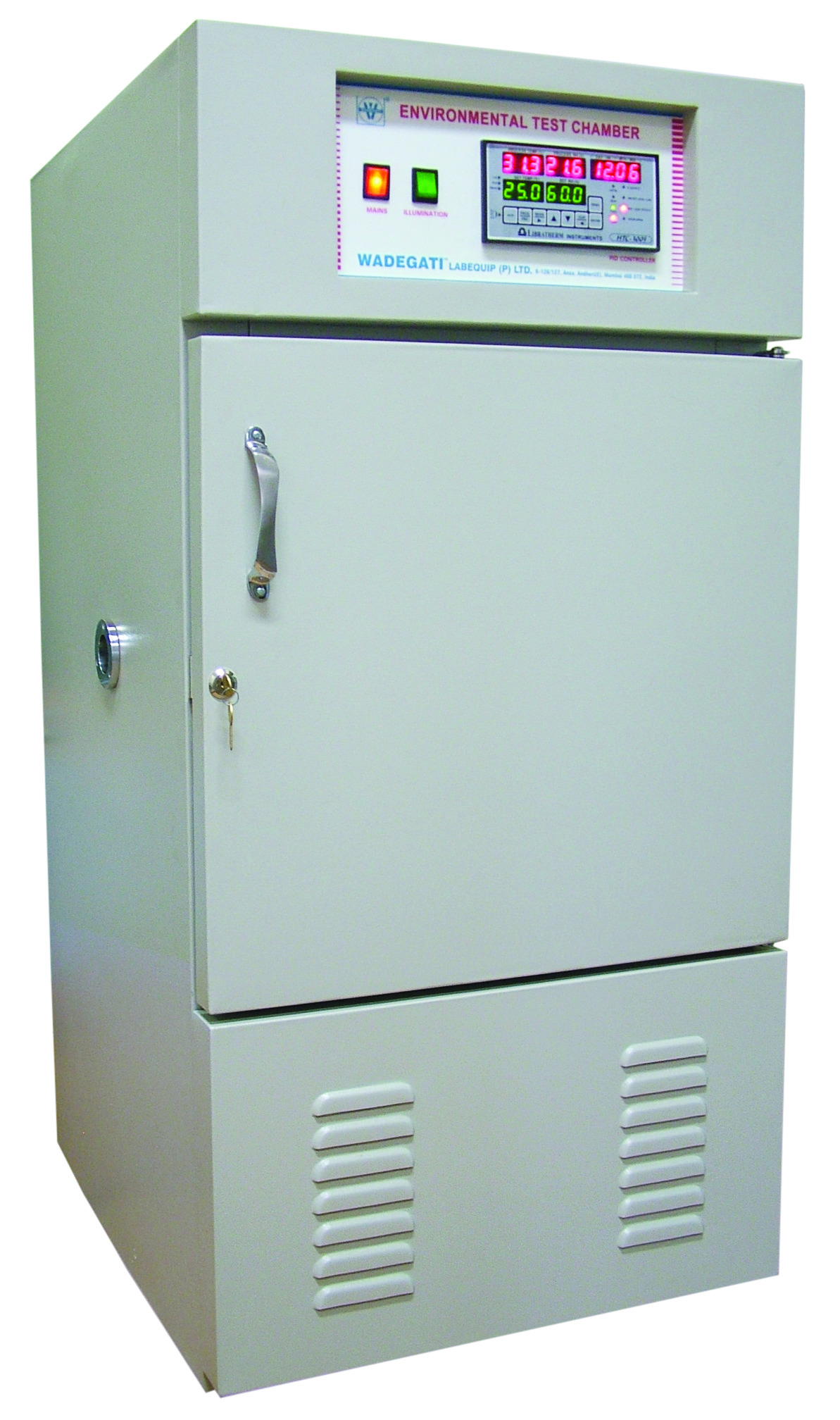

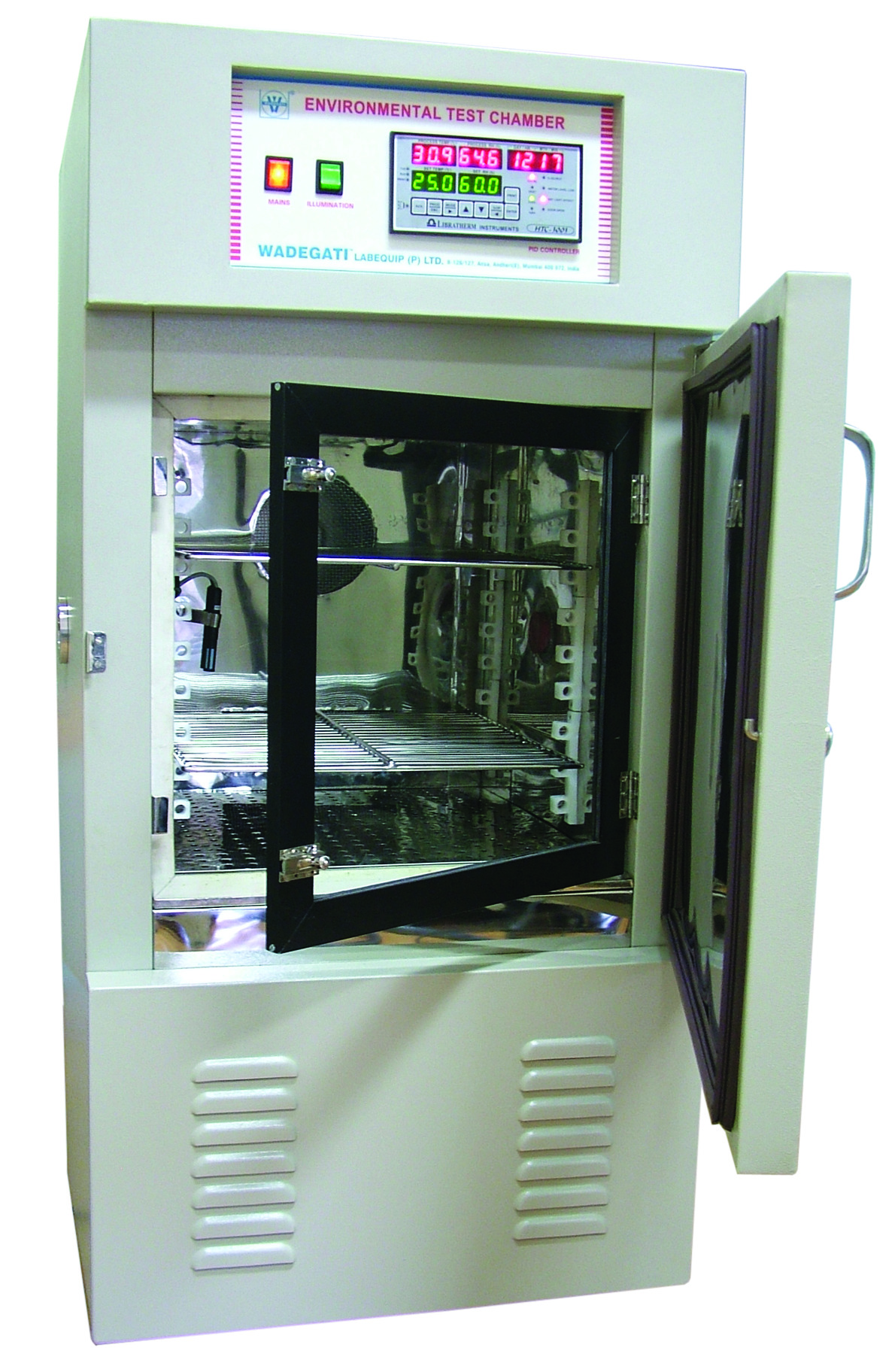

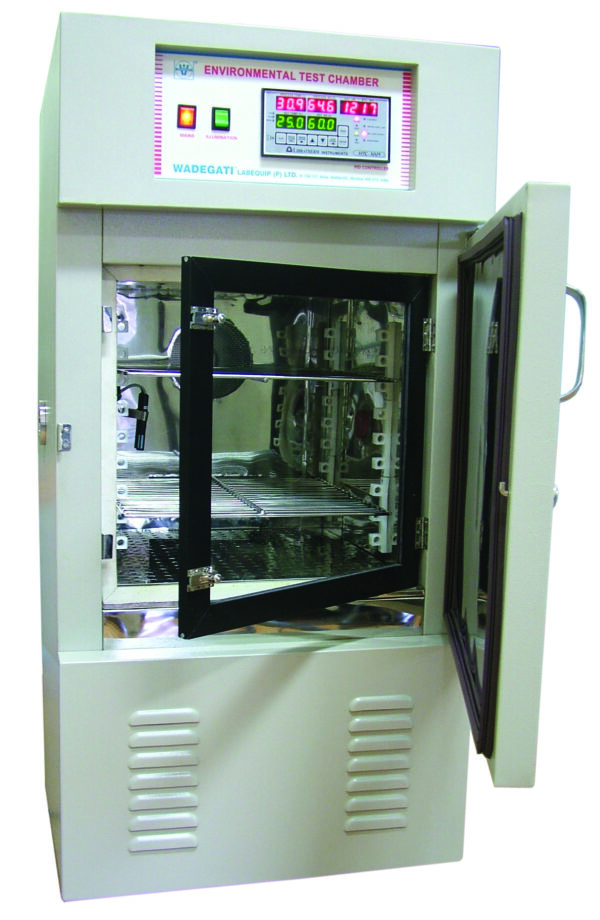

ENVIRONMENTAL CHAMBER

✅ Key Features:

• Double-Walled Construction: Available in Regular and GMP models, built for long-lasting performance in demanding environments

• High-Efficiency PUF Insulation (80mm): Ensures excellent thermal retention and energy efficiency

• Toughened Glass Viewing Window: Allows clear internal observation during testing

• 50mm Dia Port Hole: For inserting calibration probes or transmitters during real-time monitoring

• CFC-Free Refrigeration System: Eco-friendly, well-balanced cooling with efficient bypass ducting

• Humidity Control:

  • Non-condensing vapour injection for humidification

  • Low-pressure boiler with water reservoir and float valve

  • Refrigeration-based dehumidification for precision RH control

• Microprocessor-Based Dual Channel PID Controller:

  • Independent control of Temperature & Humidity (RH)

  • Capacitor-type RH sensor for accurate monitoring

  • Real-time clock and independent setpoint/process value displays

  • Solid-state relay outputs for air heater, compressor, and boiler heater

• Dynamically Balanced Circulation System: Ensures uniform distribution of temperature and humidity

• Front Panel Programming: User-friendly interface for easy setting and monitoring

⚙️ Technical Specifications:

• Temperature Range: 10°C to 50°C (± 0.5°C accuracy)

• Humidity Range: 40% to 95% RH (± 2% RH accuracy)

• Chamber Capacities: 200 L, 400 L, 800 L, 1000 L

• Power Supply: 230 V, 1 Phase, 50 Hz

Applications:

• Climatic durability testing of electronic/electrical components

• Cyclic environmental tests simulating tropical & extreme tropical climates

• Accelerated life testing and failure analysis

• Reliability evaluation for R&D and quality assurance in electronics, automotive, and defense sectors
