Key Features:
-
✅ Complies with ASTM D-2112, D-2272, IP 229, IS:12958-1990 standards
-
✅ Determines cloud point (onset of haziness) and pour point (lowest temperature of fluid flow)
-

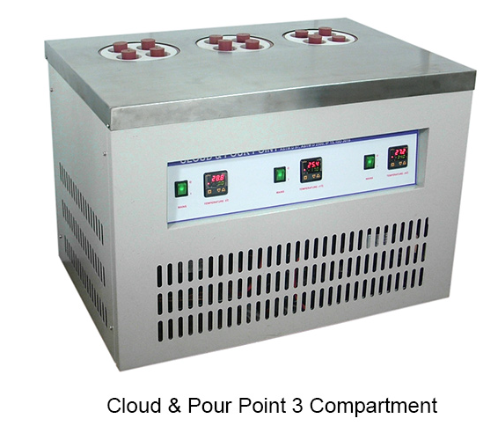

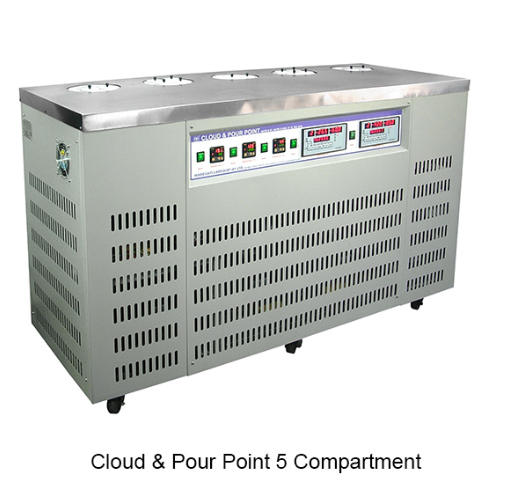

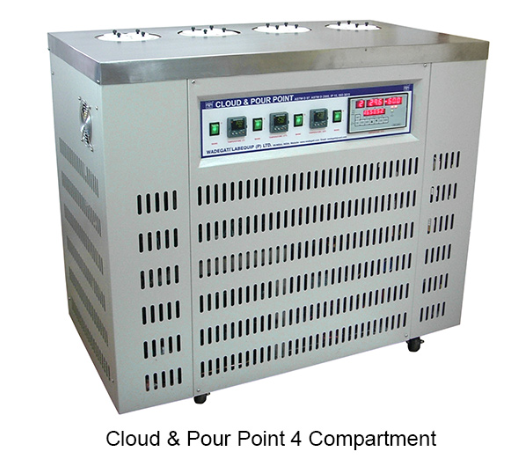

✅ Available in three, four, and five chamber configurations
-
✅ CFC-free single or cascade refrigeration systems with eco-friendly refrigerants
-
✅ Individual digital temperature control for each test chamber
-
✅ Each compartment holds 4 test jars with 4 corresponding test jackets
-
✅ Wide range of test temperatures: 0°C, –17°C, –34°C, –51°C, –71°C
-
✅ Power supply: 230 V, 1 Phase, 50 Hz
⚙️ Technical Specifications:
| Parameter | Specification |
|---|---|
| Standards | ASTM D-2112, D-2272, IP 229, IS:12958-1990 |
| Chamber Configurations | 3, 4, or 5 chambers |
| Test Capacity per Chamber | 4 test jars with jackets |
| Temperature Range | 0°C, –17°C, –34°C, –51°C, –71°C |
| Refrigeration Type | CFC-free Single / Cascade (Eco-friendly refrigerant) |
| Temperature Control | Individual Digital PID Controller per chamber |
| Power Supply | 230 V AC ±10%, 1 Phase, 50 Hz |
🧪 Applications:
-
Testing low-temperature operability of lubricants, diesel, fuel oils, and crude oils
-
Quality control and compliance in refineries, petrochemical plants, and R&D labs
-
Essential for industries in cold climates and transport fuel specification
