Key Features
-
Dual Adjustable Speeds: Infinitely selectable 10 to 165 RPM via speed regulator (digital RPM display) – run low or high shear profiles.
-
Automatic Test Control: Electronic pre‑set timer with audible alarm; stops rotation & heating at end of cycle.
-
Safety Interlock: Motor, fan & heater cut off automatically when lid is opened.
-
Precision Temperature System: Air‑circulated, digitally controlled bath from Ambient to 165°C ±1°C for uniform sample heating.
-

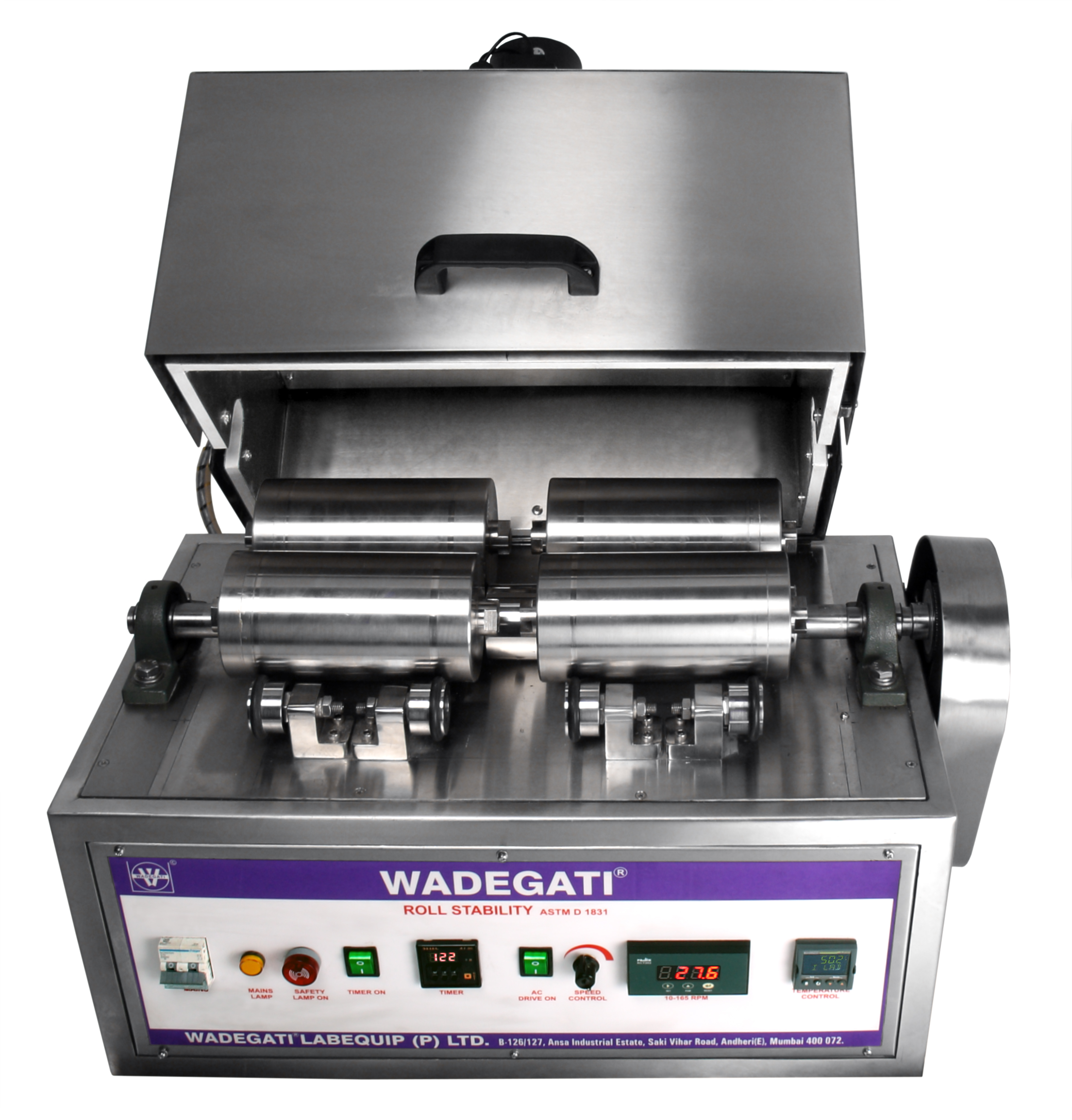

Robust Test Capacity: 4 corrosion‑proof stainless steel roll test cylinders each with stainless steel roller.
-
Repeatable Results: Stable speed, uniform temperature and timed cycles minimize operator variability.
-
Power Supply: 230 V, 50 Hz, 1 Phase.
Technical Highlights
| Parameter | Specification |
|---|---|
| Speed Range | 10 – 165 RPM (digital indication) |
| Temperature Range | Ambient to 165°C (±1°C) |
| Cylinders / Rollers | 4 × stainless steel assemblies |
| Timer | Electronic, pre‑set with alarm & auto shutoff |
| Safety | Lid interlock (motor/fan/heater stop) |
| Power | 230 V, 50 Hz, 1 Phase |
Typical Uses
-
Roll / mechanical stability studies of lubricating greases
-
R&D formulation screening (shear degradation vs penetration change)
-
Quality control benchmarking for production batches
-
Comparative evaluation of thickener system resilience
⭐ Benefits
-
Dual-speed flexibility (low vs high shear in one instrument)
-
Consistent, repeatable shear environment improves data confidence
-
Integrated safety & auto shutoff reduces operator risk
-
Compact, corrosion‑resistant construction lowers maintenance
